Check operation of steering wheel radio controls

Check 5570TD

Self Test: check on internal communication between the microprocessor and the internal modules of the radio

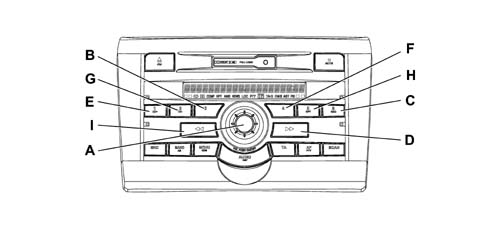

Irrespective of the position of the key, switch on the radio by pressing the 'VOL PUSH ON/OFF knob (A) for more than a second.

Press buttons '3' (B) and '6 RND (C) at the same time. Having started the acoustic test at the speakers, press button '1 CD+' (E) to enter the Self Test mode.

'COMMS TEST - PASS should appear on the display.

If the words 'CAN SYSTEM FAILURE appear, this means that the radio is not managing to converse with the vehicle CAN.

If the words 'SELF TEST FAILURE appear, this means that the internal microprocessor is not communicating correctly with one or more of the internal modules (DSP, Tuner, CD/Tape Controller, LCD).

Check on steering wheel controls

The controls on the steering wheel are managed by the CAN node (NVO) and the check on the operation should be carried out using the Examiner diagnostic equipment. Alternatively, it is possible to carry out a simple test to speed up the operation.

Turn the ignition key to the ON position, press the 'VOL PUSH ON/OFF knob (A) for more than a second to switch on the radio (check that the display and the radio buttons light up).

Press the '<<' button (I) or the '>>' button (D) to tune into a radio station that is easily received.

Press the 'VOL +' button the steering wheel and check that the volume increases.

Press the 'VOL -' button the steering wheel and check that the volume decreases.

To exit the diagnostic procedures, switch off the radio by pressing the 'VOL PUSH ON/OFF button (A) for more than a second and/or turn the ignition key OFF.
