3 door saloon versions

Make

Fiat

Model

Stilo Factory Service Manual

Year

2001–2007

Section

Vehicle dimensions › 3 door saloon versions

Specifications3 door saloon versions

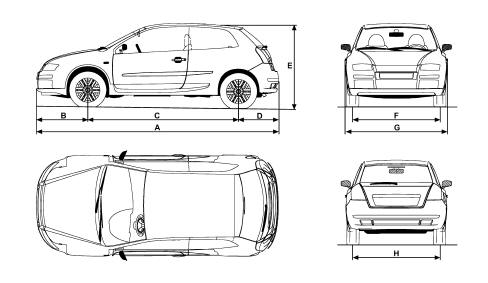

3 door saloon versions

	1.2 16v	1.4 16V	1.6 16v	1.8 16v	2.4 20 V	1.9 JTD 80 bhp	1.9 JTD 115 bhp	1.9 JTD 16V
A (mm)	4182	4182	4182	4182	4182	4182	4182	4182
B (mm)	887	887	887	887	887	887	887	887
C (mm)	2600	2600	2600	2600	2600	2600	2600	2600
D (mm)	695	695	695	695	695	695	695	695
E (mm)	1475	1475	1475	1475	1475	1475	1475	1475
F (mm)	1514 (*)	1514 (*)	1514 (*)	1514 (*)	1518(*)	1514 (*)	1514 (*)	1514 (*)
G (mm)	1784	1784	1784	1784	1784	1784	1784	1784
H (mm)	1508 (*)	1508 (*)	1508 (*)	1508 (*)	1512 (*)	1508 (*)	1508 (*)	1508 (*)

(*) Depending on the dimensions of the wheel rims there may be small variations in the measurements
