SpecificationsMulti Wagon versions

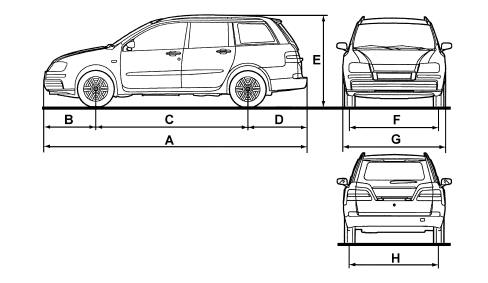

Multi Wagon versions
| 1.4 16V | 1.6 16v | 1.8 16v | 1.9 JTD 80 bhp (***) | 1.9 JTD 115 bhp (***) | 1.9 JTD 16V | |
|---|---|---|---|---|---|---|
| A (mm) | 4516 | 4516 | 4516 | 4516 | 4516 | 4516 |
| B (mm) | 893 | 893 | 893 | 893 | 893 | 893 |
| C (mm) | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| D (mm) | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| E (mm) | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| F (mm) | 1514 (*) | 1514 (*) | 1514 (*) | 1514 (*) | 1514 (*) | 1514 (*) |
| G (mm) | 1756 | 1756 | 1756 | 1756 | 1756 | 1756 |
| H (mm) | 1508 | 1508 | 1508 | 1508 | 1508 | 1508 |
(*) Depending on the dimensions of the wheel rims there may be small variations in the measurements
