Specifications5 door saloon versions

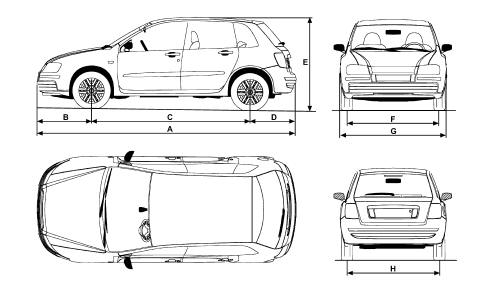

5 door saloon versions

	1.2 16v	1.4 16V	1.6 16v	1.8 16v	2.4 20 V	1.9 JTD 80 bhp	1.9 JTD 115 bhp	1.9 JTD 16V
A (mm)	4253	4253	4253	4253	4253	4253	4253	4253
B (mm)	893	893	893	893	893	893	893	893
C (mm)	2600	2600	2600	2600	2600	2600	2600	2600
D (mm)	760	760	760	760	760	760	760	760
E (mm)	1525	1525	1525	1525	1525	1525	1525	1525
F (mm)	1514 (*)	1514 (*)	1514 (*)	1514 (*)	1518 (*)	1514 (*)	1514 (*)	1514 (*)
G (mm)	1756	1756	1756	1756	1756	1756	1756	1756
H (mm)	1508 (*)	1508 (*)	1508 (*)	1508 (*)	1512 (*)	1508 (*)	1508 (*)	1508 (*)

(*) Depending on the dimensions of the wheel rims there may be small variations in the measurements
