VEHICLE LIFTING POINTS

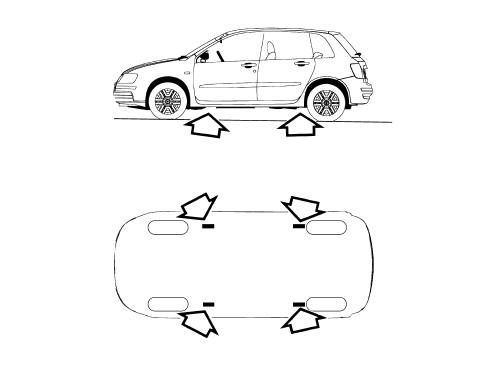

To lift the vehicle using a ramp or hoist, place the ends of the arms or hoist only in the areas shown in the figure.

Before lifting the vehicle using portable lifts, lock the wheels by placing chocks in front of (behind) the front (rear) wheels.

After having raised the vehicle, support it using safety stands.
