FLOW METER - R R

Operation 1060G10 · DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL

2.0 16V JTD

Removing

- Disconnect the negative battery terminal.

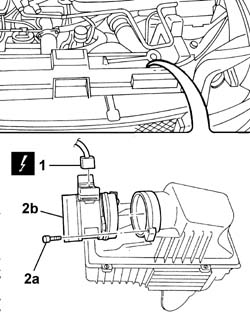

1. Disconnect the electrical connection for the air flow meter.

- Open the retaining band between the air flow meter and the turbo flexible air inlet pipe.

2. Undo the fixing bolts (2a) and remove the air flow meter (2b).

FLOW METER - R R

Refitting

- Connect the air flow meter to the air filter and fasten it using the bolts.

- Connect the air flow meter to the turbo flexible air inlet pipe and fit a new retaining band.

- Connect the electrical connection for the air flow meter.

- Connect the negative battery terminal.

2.2 16V JTD

Removing

- Disconnect the negative battery terminal.

1. Disconnect the electrical connection for the air flow meter.

- Open the retaining band between the air flow meter and the turbo flexible air inlet pipe.

2. Undo the fixing bolts (2a) and remove the air flow meter (2b).

FLOW METER - R R

Refitting

- Connect the air flow meter to the air filter and fasten it using the bolts.

- Connect the air flow meter to the turbo flexible air inlet pipe and fit a new retaining band.

- Connect the electrical connection for the air flow meter.

- Connect the negative battery terminal.
