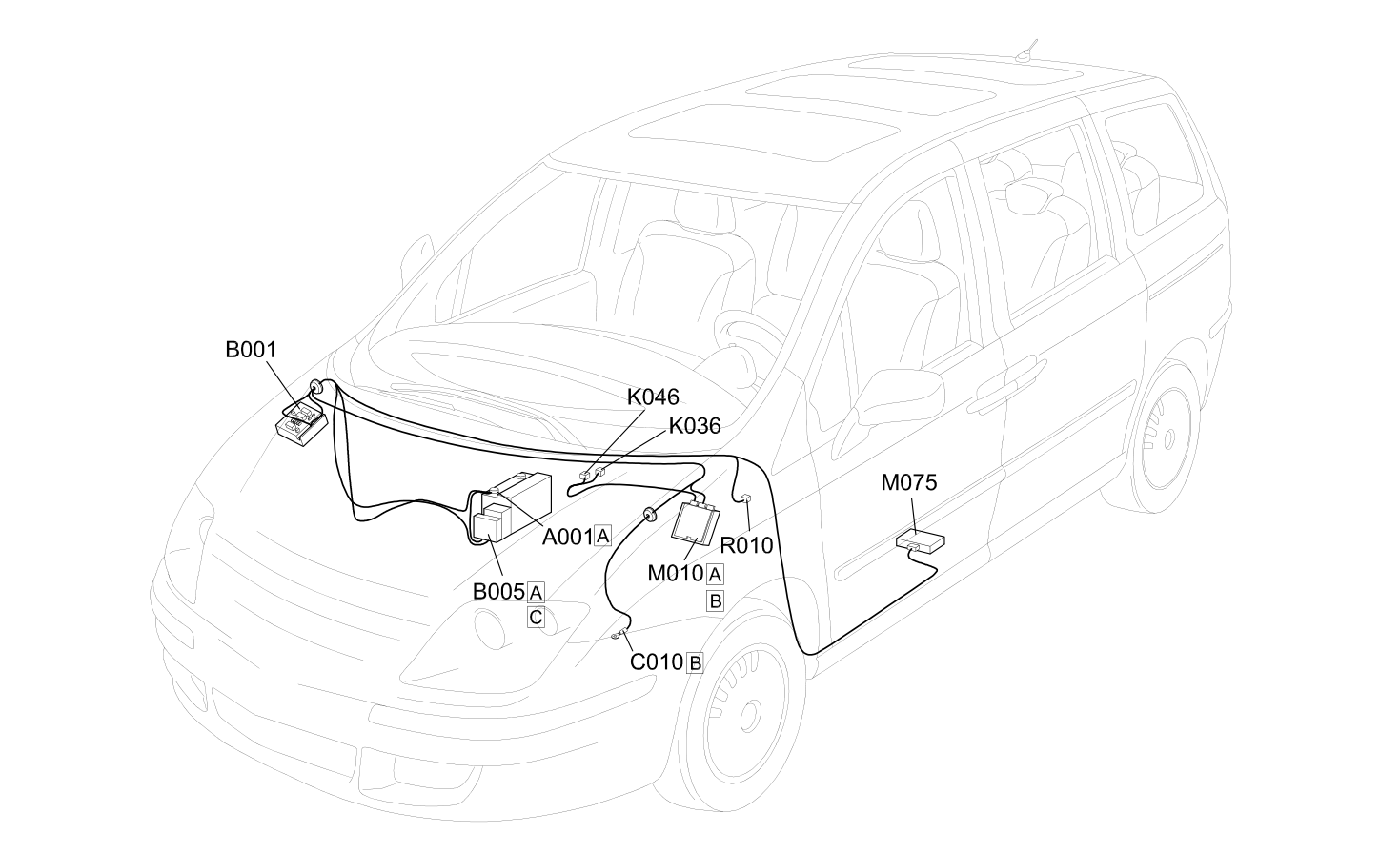

ADDITIONAL HEATER COMPONENT LOCATION
Component location
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| B001 | Engine compartment junction unit | 5505A |
| B005 | MAXI FUSE box | |
| C010 | Left front earth | |
| K036 | Engine coolant temperature sensor/sender unit | 1,056B |
| K046 | Rpm sensor | 1060G |
| M010 | Engine management control unit | 1060G |
| M075 | Additional heater control unit | |
| R010 | Multiple diagnostic coupling |
