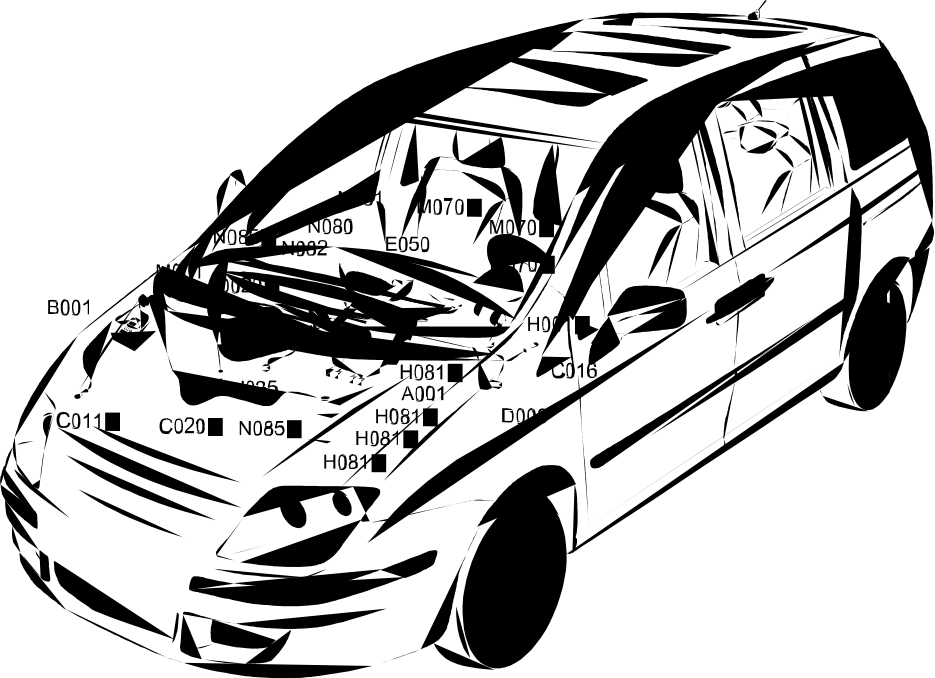

AIR CONDITIONING WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
B001	Engine compartment junction unit	5,505A
C011	Right front earth
C016	Air conditioning unit earth
C020	Passenger dashboard earth
C030	Left rear earth
C031	Right rear earth
D001	Front/dashboard coupling
D008	Front/climate control coupling
D020	Dashboard/rear coupling
D031	Right front door coupling
E050	Instrument panel	5560B
H081	Climate control fan operation	5040C
H125	Left rear additional fan control	5010B
H126	Right rear additional fan control	5010B
J035	Passenger compartment air fan relay
K090	Sun/dusk sensor	5010D
M001	Body computer	5505A
M067	Passenger door control unit (NPP)
M070	Climate control sytem control unit
N080	Air distribution flap actuator	5040D
N081	Mixture flap actuator	5040D
N082	Outside air/recirculation intake flap actuator	5040D
N085	Passenger compartment air fan
N146	Left additional fan motor	5010B
N147	Right additional fan motor	5010B
P061	Right external rear view mirror	7005R

Wiring Diagram

Components

Component code	Description	Reference to the assembly
D008	Front/climate control coupling
H081	Climate control fan operation	5040C
K087	Lower mixed air temperature sensor	5010D
K088	Upper mixed air temperature sensor	5010D
K089	Passenger compartment air temperature sensor	5010D
M070	Climate control sytem control unit
N078	Left mixed air flap actuator	5040D
N079	Right mixed air flap actuator	5040D
N080	Air distribution flap actuator	5040D
N82	Outside air/recirculation intake flap actuator	5040D

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
A001	BATTERY
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
C011	RIGHT FRONT EARTH
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
D008	AIR CONDITIONING-HEATER FRONT COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H001	Ignition switch	Op. 5520A IGNITION SWITCH
H081	CLIMATE CONTROL FAN OPERATION	Op. 5040C AIR CONDITIONING CASING AND COMPONENTS
J035	PASSENGER COMPARTMENT AIR FAN RELAY
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT
N080	AIR DISTRIBUTION FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N081	MIXTURE FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N082	OUTSIDE AIR/RECIRCULATION INTAKE FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N085	PASSENGER COMPARTMENT AIR FAN

2.0 16V JTD, 2.2 16V JTD · Automatic Air Conditioning, MY 2005

Components

Component code	Description	Reference to the assembly
A001	BATTERY
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
C001	BATTERY EARTH
C016	AIR CONDITIONING UNIT EARTH
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D001	FRONT/DASHBOARD COUPLING
D008	AIR CONDITIONING-HEATER FRONT COUPLING
D020	DASHBOARD/REAR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H001	Ignition switch	Op. 5520A IGNITION SWITCH
H081	CLIMATE CONTROL FAN OPERATION	Op. 5040C AIR CONDITIONING CASING AND COMPONENTS
H125	LEFT REAR ADDITIONAL FAN CONTROL	Op. 5010B CLIMATE CONTROL AIR PIPES AND DUCTS
H126	RIGHT REAR ADDITIONAL FAN CONTROL	Op. 5010B CLIMATE CONTROL AIR PIPES AND DUCTS
K087	LOWER MIXED AIR TEMPERATURE SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K088	UPPER MIXED AIR TEMPERATURE SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K089	PASSENGER COMPARTMENT AIR TEMPERATURE SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
K125	RAIN AND DUSK SENSOR	Op. 5010D AIR TEMPERATURE RECORDING SYSTEM
J035	PASSENGER COMPARTMENT AIR FAN RELAY
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M067	PASSENGER DOOR CONTROL UNIT (NPP)
M070	CLIMATE CONTROL SYSTEM CONTROL UNIT
N078	LEFT MIXED AIR FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N079	RIGHT MIXED AIR FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N080	AIR DISTRIBUTION FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N082	OUTSIDE AIR/RECIRCULATION INTAKE FLAP ACTUATOR	Op. 5040D AIR CONDITIONING CONTROLS
N085	PASSENGER COMPARTMENT AIR FAN
N146	LEFT ADDITIONAL FAN MOTOR	Op. 5010B CLIMATE CONTROL AIR PIPES AND DUCTS
N147	RIGHT ADDITIONAL FAN MOTOR	Op. 5010B CLIMATE CONTROL AIR PIPES AND DUCTS
P061	RIGHT EXTERNAL REAR VIEW MIRROR	Op. 7005R FRONT DOOR MIRRORS
