Air conditioning location components
- Make
- Fiat
- Model
- Ulysse Factory Service Manual
- Year
- 2002–2010
- Section
- Climate control system › Air conditioning location components
Wiring diagrams and electrical functionsAir conditioning location components

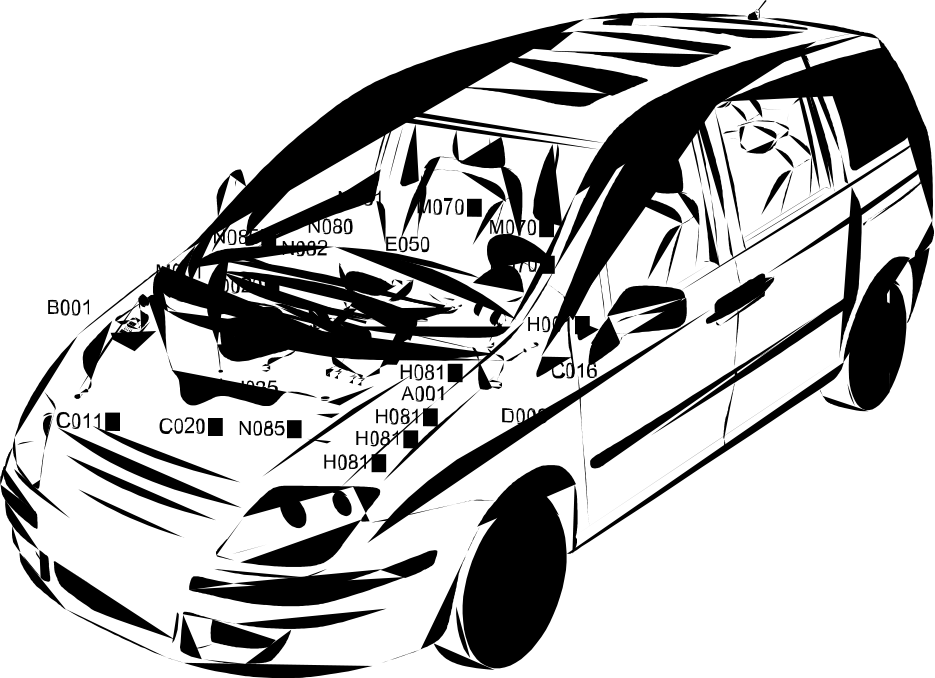

AIR CONDITIONING LOCATION COMPONENTS
Location Components
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| D008 | Front/climate control coupling | |
| H081 | Climate control fan operation | 5040C |
| K087 | Lower mixed air temperature sensor | 5010D |
| K088 | Upper mixed air temperature sensor | 5010D |
| K089 | Passenger compartment air temperature sensor | 5010D |
| M070 | Climate control sytem control unit | |
| N078 | Left mixed air flap actuator | 5040D |
| N079 | Right mixed air flap actuator | 5040D |
| N080 | Air distribution flap actuator | 5040D |
| N82 | Outside air/recirculation intake flap actuator | 5040D |

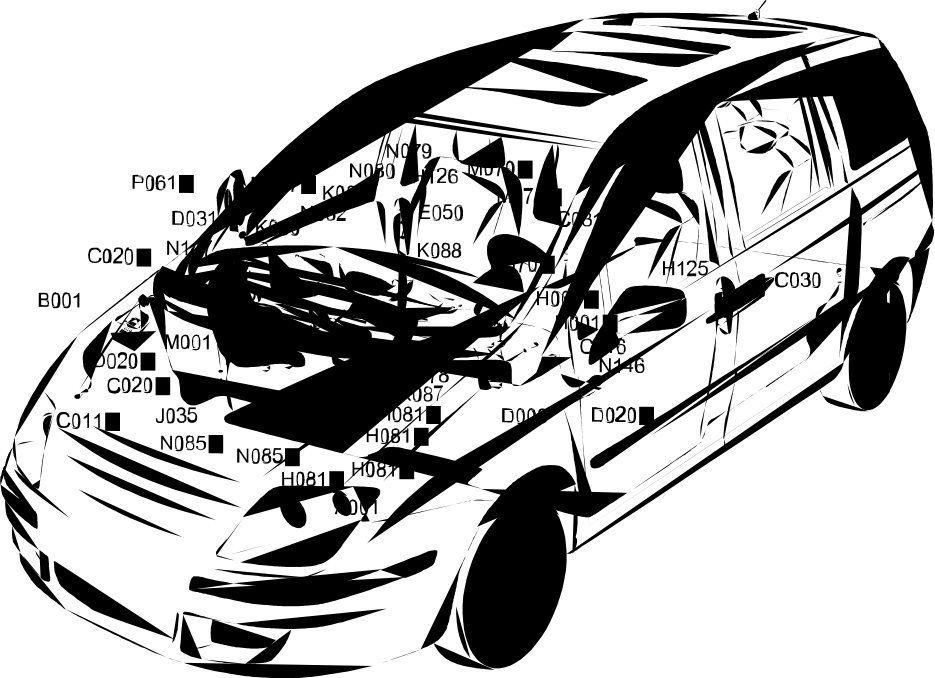

Location Components
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| D008 | Front/climate control coupling | |
| H081 | Climate control fan operation | 5040C |
| K087 | Lower mixed air temperature sensor | 5010D |
| K088 | Upper mixed air temperature sensor | 5010D |
| K089 | Passenger compartment air temperature sensor | 5010D |
| M070 | Climate control sytem control unit | |
| N078 | Left mixed air flap actuator | 5040D |
| N079 | Right mixed air flap actuator | 5040D |
| N080 | Air distribution flap actuator | 5040D |
| N82 | Outside air/recirculation intake flap actuator | 5040D |
