Courtesy lights wiring diagram

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Interior lighting › Courtesy lights wiring diagram

Wiring diagrams and electrical functionsCourtesy lights wiring diagram

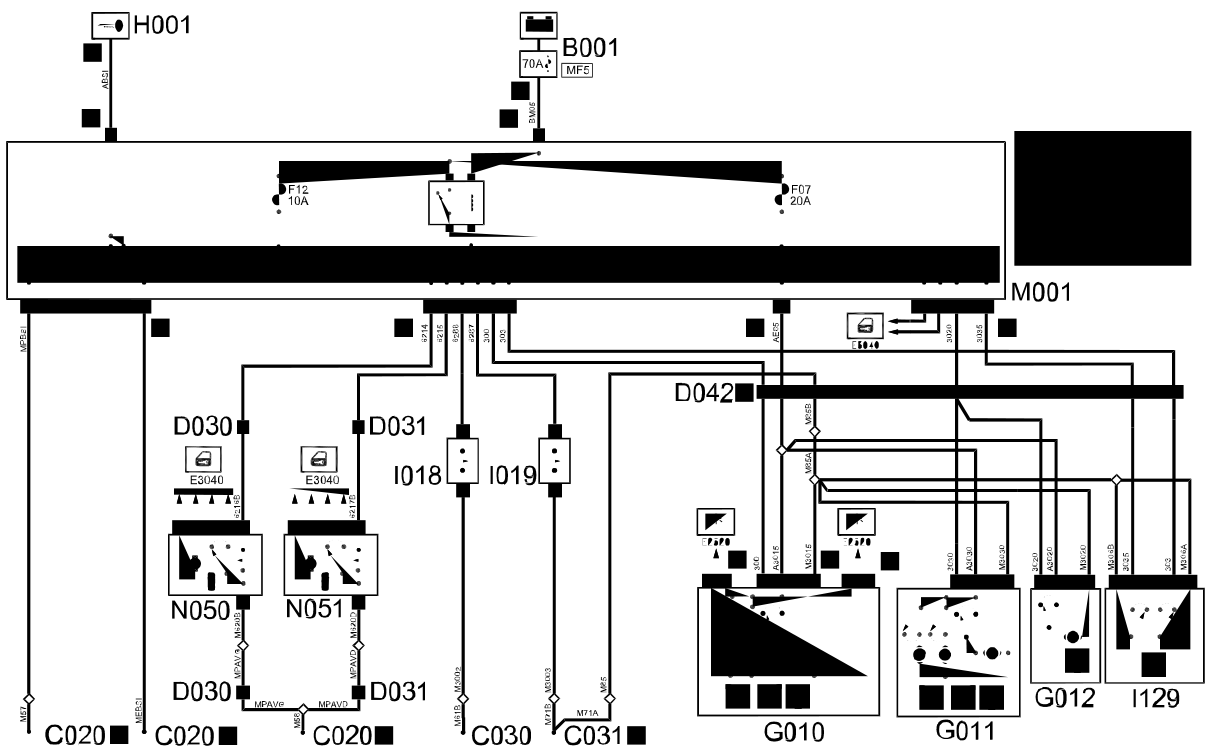

COURTESY LIGHTS WIRING DIAGRAM

Wiring Diagram

Components

Component code	Description	Reference to the assembly
C020	Passenger dashboard earth
C030	Left rear earth
C031	Right rear earth
D030	Left front door coupling
D031	Right front door coupling
D042	Courtesy light coupling
G010	Front courtesy light	7040E
G011	Passenger area front courtesy light	7040E
G012	Passenger area rear courtesy light	7040E
I018	Switch on left rear door
I019	Switch on right rear door
I129	Courtesy lights disabling switch
M001	Body computer	5505A
N050	Left front door lock geared motor	7005N
N051	Right front door lock geared motor	7005N

2.0 16V JTD, 2.2 16V JTD · MY 2005

Components

Component code	Description	Reference to the assembly
B001	ENGINE COMPARTMENT JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER''S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D042	COURTESY LIGHT COUPLING
G010	FRONT COURTESY LIGHT	Op. 7040E INTERIOR COURTESY LIGHT SYSTEM
G011	PASSENGER AREA FRONT COURTESY LIGHT	Op. 7040E INTERIOR COURTESY LIGHT SYSTEM
G012	PASSENGER AREA REAR COURTESY LIGHT	Op. 7040E INTERIOR COURTESY LIGHT SYSTEM
H001	Ignition switch	Op. 5520A IGNITION SWITCH
I018	SWITCH ON LEFT REAR DOOR
I019	SWITCH ON RIGHT REAR DOOR
M001	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M80	CENTRAL DOOR LOCKING CONTROL UNIT
N050	LEFT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
