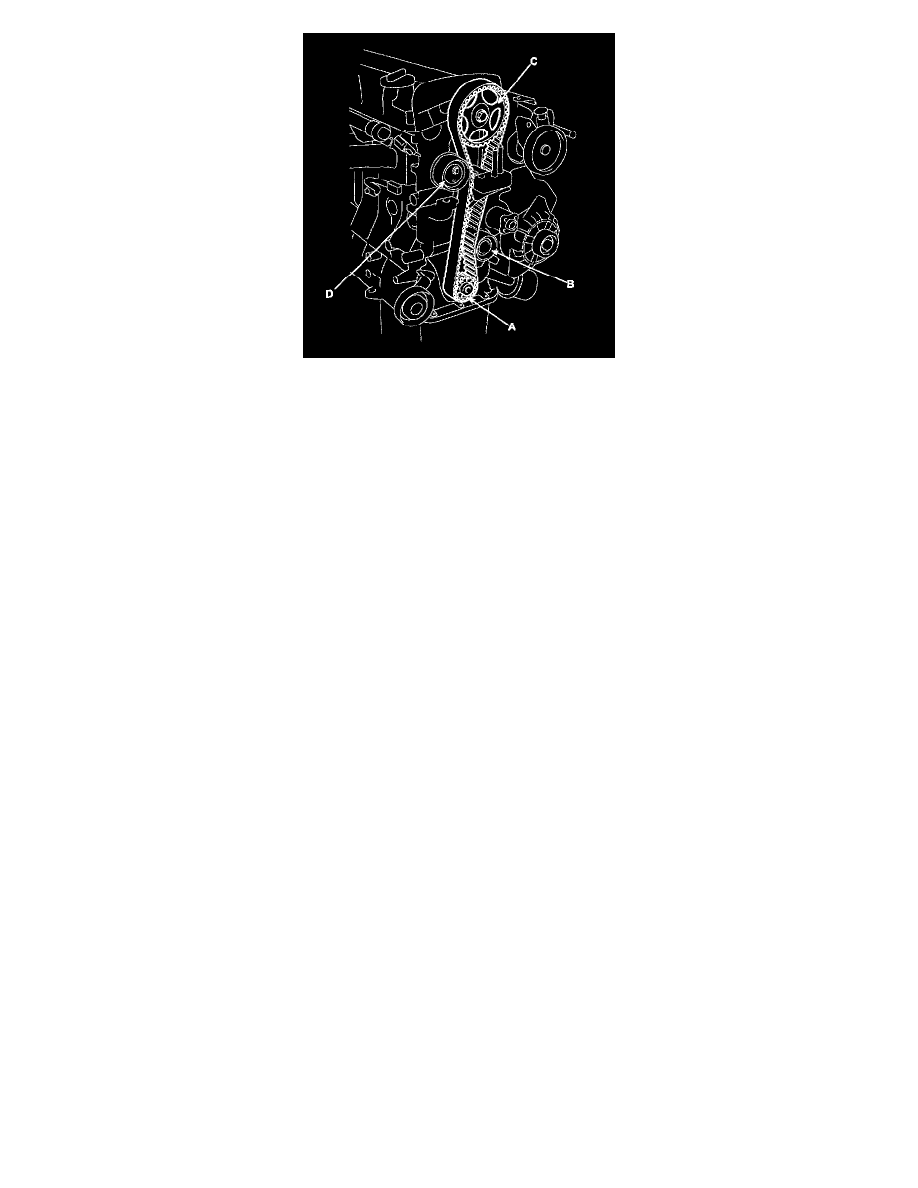

Belt so as not give slack at each center of shaft. Do as following procedures when installing timing belt. Crankshaft sprocket (A) -> Idler pulley (B) ->
Camshaft sprocket (C) -> timing belt tensioner (D).
