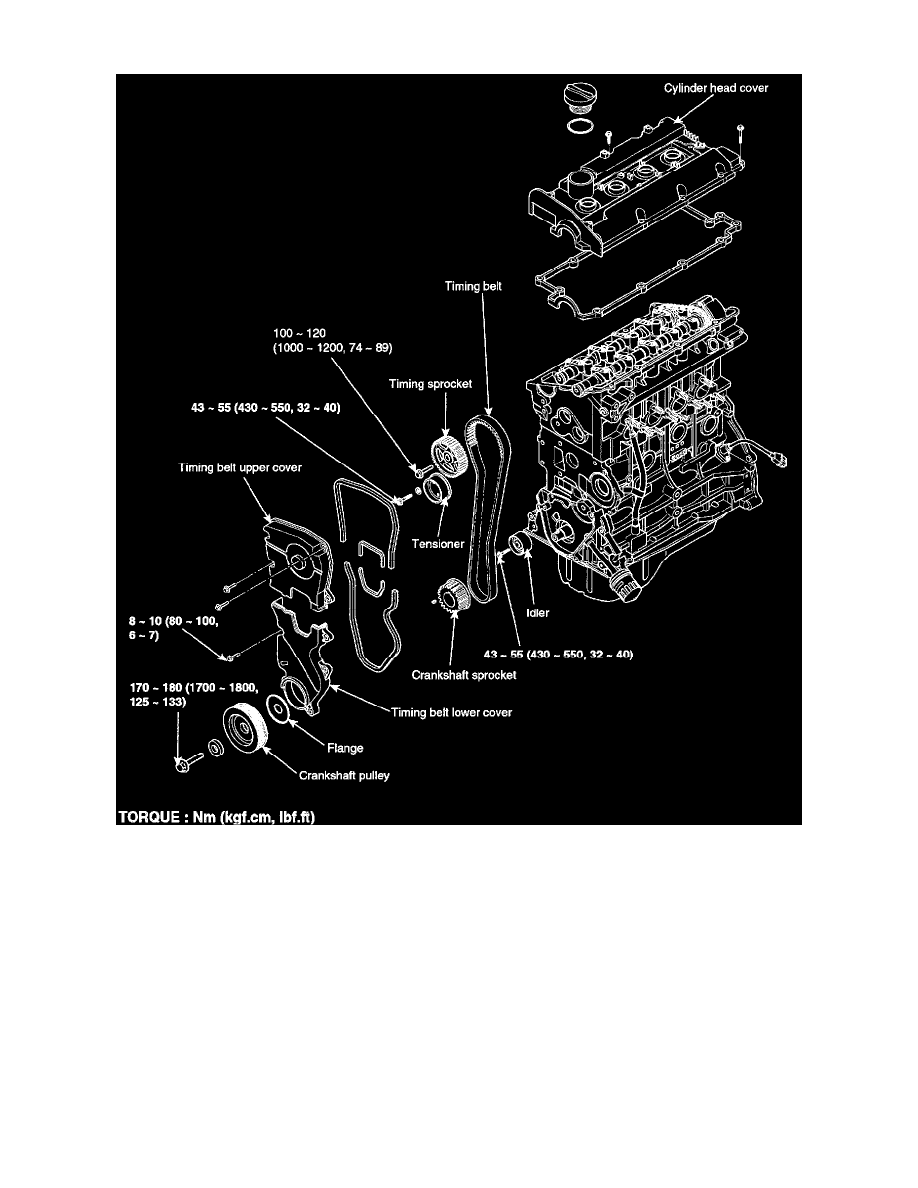

Timing Belt: Diagrams (page 15 of 19)
- Make
- Hyundai
- Model
- Elantra
- Engine
- L4-2.0L
- Year
- 2004
- Section
- Timing Belt
MaintenanceDiagrams · page 15 of 19

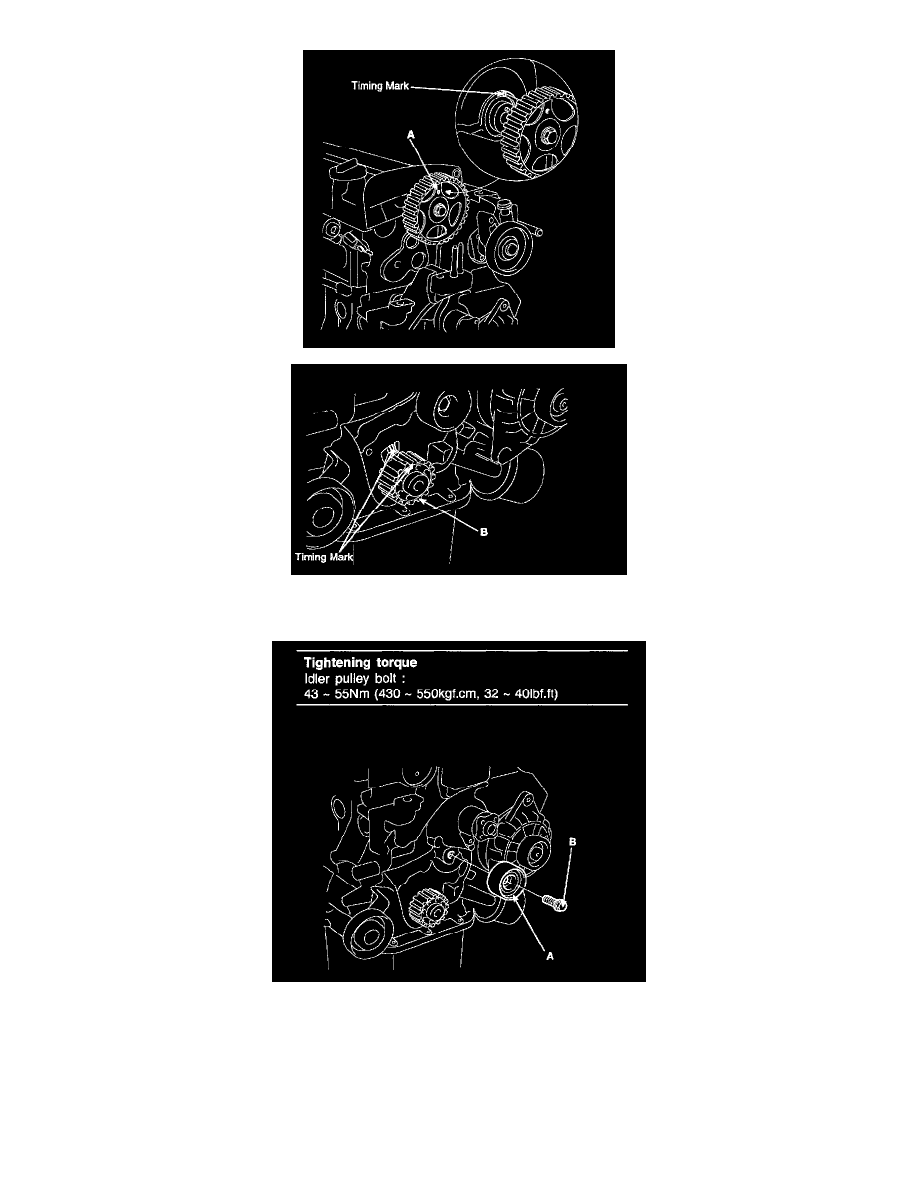

4. Align the timing marks of the camshaft sprocket (A) and crankshaft sprocket (B) with the No. 1 piston placed at top dead center and its
compression stroke.
5. Install the idler pulley (A) and tighten the bolt (B) to the specified torque.
