Timing Belt: Service and Repair

Make

Isuzu

Model

I-Mark

Engine

L4-1.8L 4FBI DSL

Year

1982

Section

Timing Belt › Service and Repair

MaintenanceService and Repair · page 1 of 4

Timing Belt: Service and Repair

1.

Disconnect battery ground cable.

2.

Remove under cover and drain coolant.

3.

Remove fan shroud, alternator belt, cooling fan and water pump pulley.

4.

Remove ten bolts securing upper dust cover, remove dust cover.

5.

Remove bypass hose.

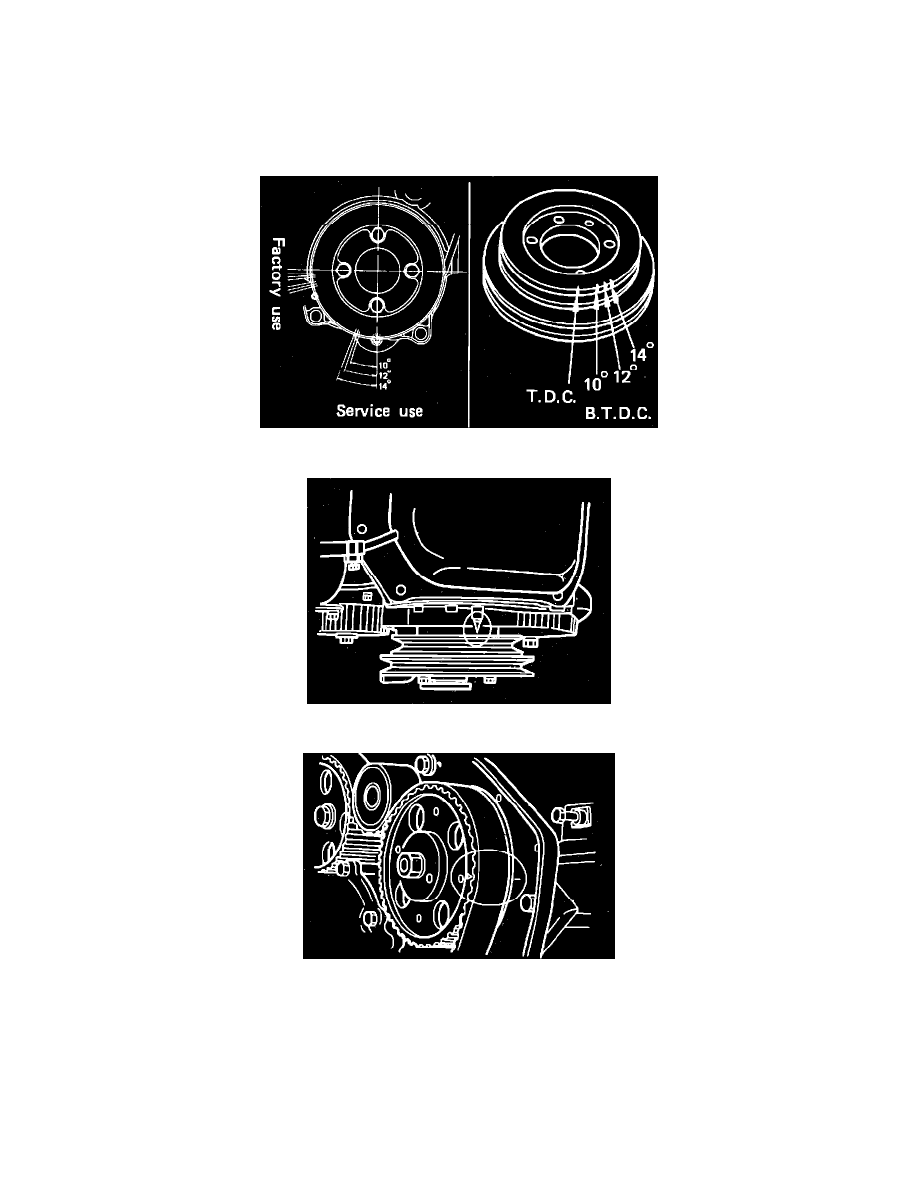

Fig. 2 Timing mark locations.

Fig. 10 Timing mark location on damper pulley.

Fig. 11 Injection pump pulley installation
