Timing Component Alignment Marks: Locations

Make

Isuzu

Model

I-Mark

Engine

L4-1.8L 4FBI DSL

Year

1982

Section

Timing Component Alignment Marks › Locations

MaintenanceLocations · page 1 of 2

Timing Component Alignment Marks: Locations

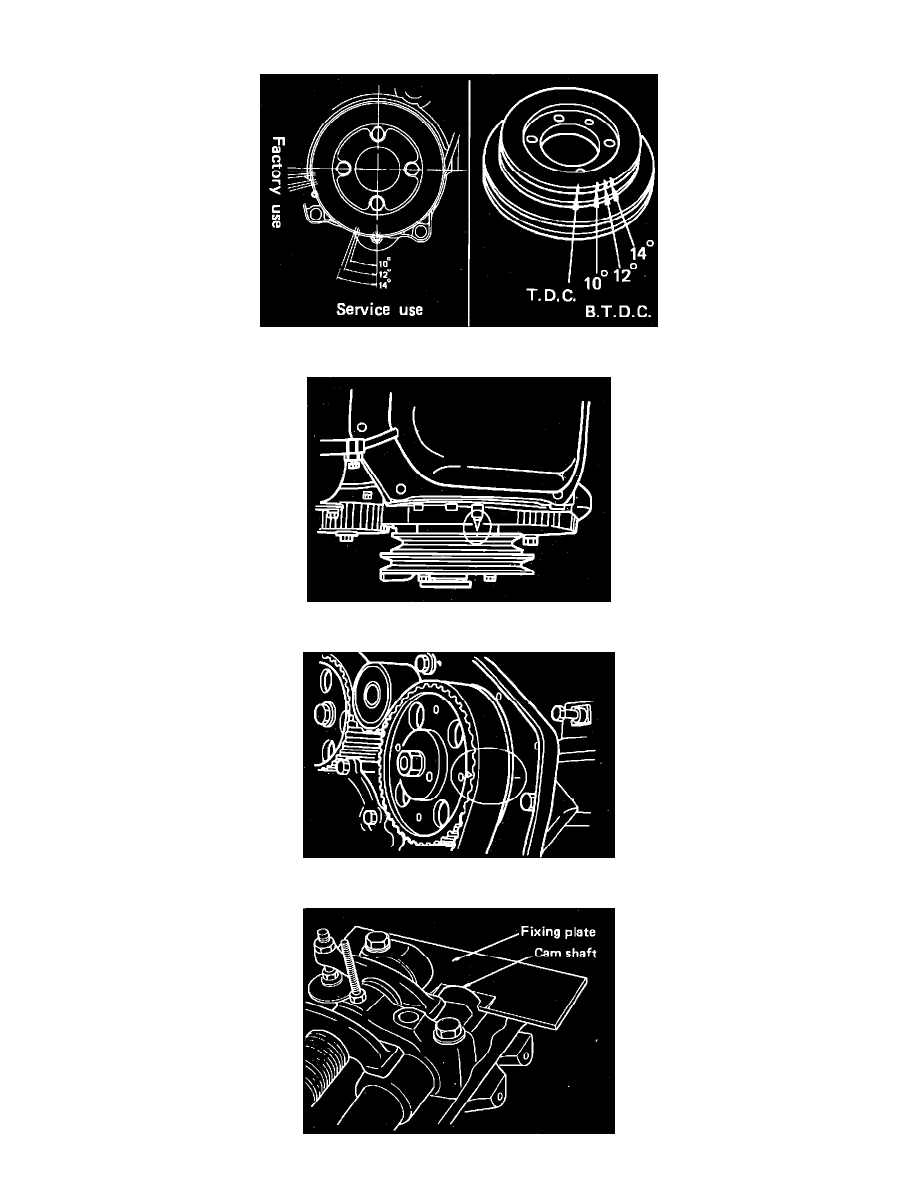

Fig. 2 Timing mark locations.

Fig. 10 Timing mark location on damper pulley.

Fig. 11 Injection pump pulley installation
