AIR FLOW METER - R.R.

Operation 1060G10 · DIESEL INJECTION PRESSURE PUMP ELECTRONIC CONTROL

2.4 JTD 20V

Removing

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1048A56 UPPER RESONATOR - R.R.

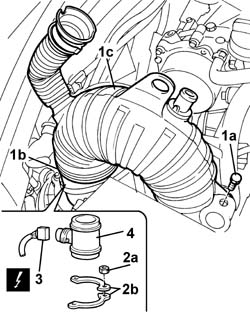

1. Unscrew bolt (1a), open band (1b) and disconnect the air flow meter pipe (1c).

2. Undo nuts (2a) securing the air flow meter mounting brackets (2b).

3. Disconnect the electrical connection for the air flow meter.

4. Remove the air flow meter.

Refitting

- Fit the air flow meter and connect the electrical connection.

Clean the air flow meter thoroughly to avoid damaging the sensitive element of the air flow meter.

- Position the brackets and secure them using the nuts.

- Connect the air delivery sleeve to the turbocharger to the air flow meter and tighten the bolt.

See in Op. 1048A56 UPPER RESONATOR - R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

2.4 JTD 10V

Removing

See in Op. 1016A10

See in Op. 1048A21

1. Undo the nuts (1a) fixing the air flow meter mounting brackets (1b).

2. Disconnect the turbocharger air supply hose from the air flow meter.

3. Disconnect the electrical connection for the air flow meter.

4. Remove the air flow meter.

Refitting

- Thoroughly clean the air flow meter and the areas connected with the air filter casing in order to prevent any dirty air from passing through.

- Fit the flow meter and connect the electrical connection to it.

- Position the brackets and secure them using the nuts.

- Connect the turbocharger air supply hose to the air flow meter.

See in Op. 1048A21

See in Op. 1016A10
