Engine oil cooling radiator air duct - R.R.

Operation 1084C40 · ENGINE OIL COOLING CIRCUIT

2.4 JTD 20V

Removing

- Position the vehicle on a lift.

- Working via the luggage compartment, disconnect the negative battery lead.

See in Op. 4450B02 Left FRONT WHEEL (one) - R.R.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

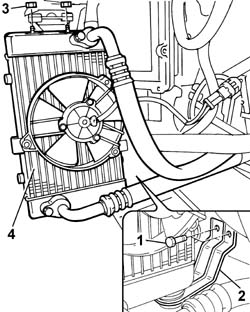

1. Undo the fixing bolts.

- Release the bracket from the engine oil radiator support pin.

2. Remove the engine oil cooling radiator mounting bracket.

3. Undo the upper fixing nuts.

4. Release the engine oil cooling radiator from the housing, securing it so that the pipes are not damaged.

1. Undo the bolts (1a) and remove the engine oil cooling radiator air duct (1b).

Refitting

- Fit the engine oil cooling radiator air duct and secure it using the bolts.

- Place the engine oil cooling radiator in position complete with duct.

- Tighten the upper nuts fixing it to the mounting bracket.

- Fit the lower engine oil cooling radiator mounting bracket and tighten the fixing bolts.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

See in Op. 4450B02 Left FRONT WHEEL (one) - R.R.

- Connect the negative battery terminal.

- Remove the vehicle from the lift.
