Engine oil heat exchanger - R.R.

Operation 1084C10 · ENGINE OIL COOLING CIRCUIT

2.4 JTD 20V

Removing

- Position the vehicle on a lift.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1048A56 UPPER RESONATOR - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1084C38 Engine oil supply and return pipes to cooling radiator - R.R.

1. Unscrew the central pin.

- Lower the vehicle.

2. Remove the engine oil heat exchanger.

Refitting

- Fit the engine oil heat exchanger in the special housing.

- Raise the vehicle.

- Tighten the fixing pin to torque.

See in Op. 1084C38 Engine oil supply and return pipes to cooling radiator - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1048A56 UPPER RESONATOR - R.R.

See in Op. 1048B44 RIGID air supply PIPE from heat exchanger to intake manifold - R.R.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

See in Op. 0010T20 Engine REFRIGERANT FLUID - Change

See in Op. 0010T11 ENGINE OIL - Check level and top up if necessary

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

- Remove the vehicle from the lift.

2.4 20V

Removing

- Position the vehicle on a lift.

- Open the boot, remove the cover on the left hand side and disconnect the negative battery lead.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

1. Undo the bolts fixing the coolant pipe mounting brackets to the crankcase.

1. Loosen the bands and disconnect the heat exchanger coolant supply and return pipes.

Collect the coolant that comes out in a suitable container.

1. Undo the connector (1a) and remove the engine oil heat exchanger (1b).

Refitting

- Position the engine oil heat exchanger and secure it using the connector.

- Connect the coolant supply and return pipes to the heat exchanger and secure them using the bands.

- Tighten the bolts fixing the coolant mounting brackets to the crankcase.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

- [0010T11]

See in Op. 0010T21 ENGINE COOLANT - Check density and top up if necessary

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

- Connect the negative battery lead.

- Remove the vehicle from the lift.

3.0 V6, 3.2 V6

Removing

- Position the vehicle on a lift.

- Open the boot, remove the cover on the left hand side and disconnect the negative battery lead.

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

- Raise the vehicle on the lift.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

See in Op. 1092G10 Engine components single drive BELT - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 1048A28 vacuum air circuit resonator pipe - r+r

See in Op. 1008C10 Power unit REACTION ROD - Replace

See in Op. 1048A11 COMPLETE AIR FILTER -R.R.

See in Op. 1072B50 Air CHAMBER - R.R.

See in Op. 2710A31 INTERMEDIATE DRIVE SHAFT - R.R.

See in Op. 1076B84 EXHAUST PIPE BETWEEN RIGHT PRECONVERTER AND CATALYTIC CONVERTER - R.R.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

See in Op. 1076B84 EXHAUST PIPE BETWEEN RIGHT PRECONVERTER AND CATALYTIC CONVERTER - R.R.

See in Op. 1080B39 RIGHT CATALYTIC PRECONVERTER - R.R. or Replace Gasket

See in Op. 1076B84 EXHAUST PIPE BETWEEN RIGHT PRECONVERTER AND CATALYTIC CONVERTER - R.R.

See in Op. 5530A10 ALTERNATOR - R.R.

1. Undo the connector (1a) in the centre of the heat exchanger (1b).

2. Open the band (2a) retaining the pipe (2b) between the crankcase and the heat exchanger, then remove the heat exchanger.

Refitting

- Position the engine oil heat exchanger and fit the connecting pipe on the crankcase.

- Tighten the filter feeder duct, then tighten the hexagonal nut to the recommended torque.

- Close the band retaining the connecting pipe to the crankcase.

See in Op. 5530A10 ALTERNATOR - R.R.

See in Op. 1076B84 EXHAUST PIPE BETWEEN RIGHT PRECONVERTER AND CATALYTIC CONVERTER - R.R.

See in Op. 1080B39 RIGHT CATALYTIC PRECONVERTER - R.R. or Replace Gasket

See in Op. 1076B84 EXHAUST PIPE BETWEEN RIGHT PRECONVERTER AND CATALYTIC CONVERTER - R.R.

See in Op. 2710A31 INTERMEDIATE DRIVE SHAFT - R.R.

See in Op. 1072B50 Air CHAMBER - R.R.

See in Op. 1048A11 COMPLETE AIR FILTER -R.R.

See in Op. 1008C10 Power unit REACTION ROD - Replace

See in Op. 1048A28 vacuum air circuit resonator pipe - r+r

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1092G10 Engine components single drive BELT - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

- [0010T11]

- [0010T21]

- Connect the negative battery lead, then close the boot.

- Remove the vehicle from the lift.

2.0 TB

Removing

- Position the vehicle on a lift.

- Make sure that the ignition key is in the OFF position, then open the boot, remove the cover on the left hand side and disconnect the negative battery lead.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1048A10 COMPLETE AIR FILTER -R.R.

See in Op. 1088E10 Radiator cooling FAN - R.R.

See in Op. 1072C44 Exhaust manifold heat shield on BULKHEAD - R.R.

See in Op. 1080B40 CATALYTIC PRECONVERTER - R.R.

See in Op. 1016A40 Ignition COIL COVER on cylinder head - R.R.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

1. Undo the bolt fixing the coolant pipe mounting bracket to the crankcase.

1. Loosen the bands and disconnect the heat exchanger coolant supply and return pipes.

Collect the coolant that comes out in a suitable container.

1. Undo the connector (1a) and remove the engine oil heat exchanger (1b).

Refitting

- Position the engine oil heat exchanger and secure it using the connector.

- Connect the coolant supply and return pipes to the heat exchanger and secure them using the bands.

- Tighten the bolt fixing the coolant pipe mounting bracket to the crankcase.

See in Op. 1084B30 CARTRIDGE ENGINE OIL FILTER -R.R.

See in Op. 1016A40 Ignition COIL COVER on cylinder head - R.R.

See in Op. 1080B40 CATALYTIC PRECONVERTER - R.R.

See in Op. 1072C44 Exhaust manifold heat shield on BULKHEAD - R.R.

See in Op. 1088E10 Radiator cooling FAN - R.R.

See in Op. 1048A10 COMPLETE AIR FILTER -R.R.

See in Op. 1048A50 air inlet pipe to turbocharger - r + r

See in Op. 1048A21 AIR INLET HOSE FROM INTAKE TO FILTER - R.R.

See in Op. 0010T11 ENGINE OIL - Check level and top up if necessary

See in Op. 0010T21 ENGINE COOLANT - Check density and top up if necessary

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

- Connect the negative battery lead.

- Remove the vehicle from the lift.

2.4 JTD 10V

Removing

- Position the vehicle on a lift.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1084B30

- Disconnect the lower radiator hose and drain the engine coolant.

Position a special container for collectign the engine coolant.

To disconnect the pipe, press the spring, manually, and release the rapid pipe connector from the attachment on the radiator.

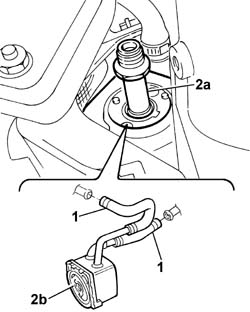

1. Loosen the bands and disconnect the engine coolant inlet and outlet pipes from the engine oil heat exchanger.

2. Undo the centre pin (2a) and remove the engine oil heat exchanger (2b).

Refitting

- Fit the engine oil heat exchanger in the special housing.

- Tighten the fixing pin to torque.

- Connect the engine coolant inlet and outlet hoses to the rigid pipes.

See in Op. 1084B30

See in Op. 0010T20 Engine REFRIGERANT FLUID - Change

See in Op. 0010T11 ENGINE OIL - Check level and top up if necessary

- [0010T11]

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

- Remove the vehicle from the lift.
