TRANSFER BOX

18

OVERHAUL

REAR OUTPUT SHAFT

Service repair no - 41.20.18/01

Remove

1. Remove differential unit.

See this section.

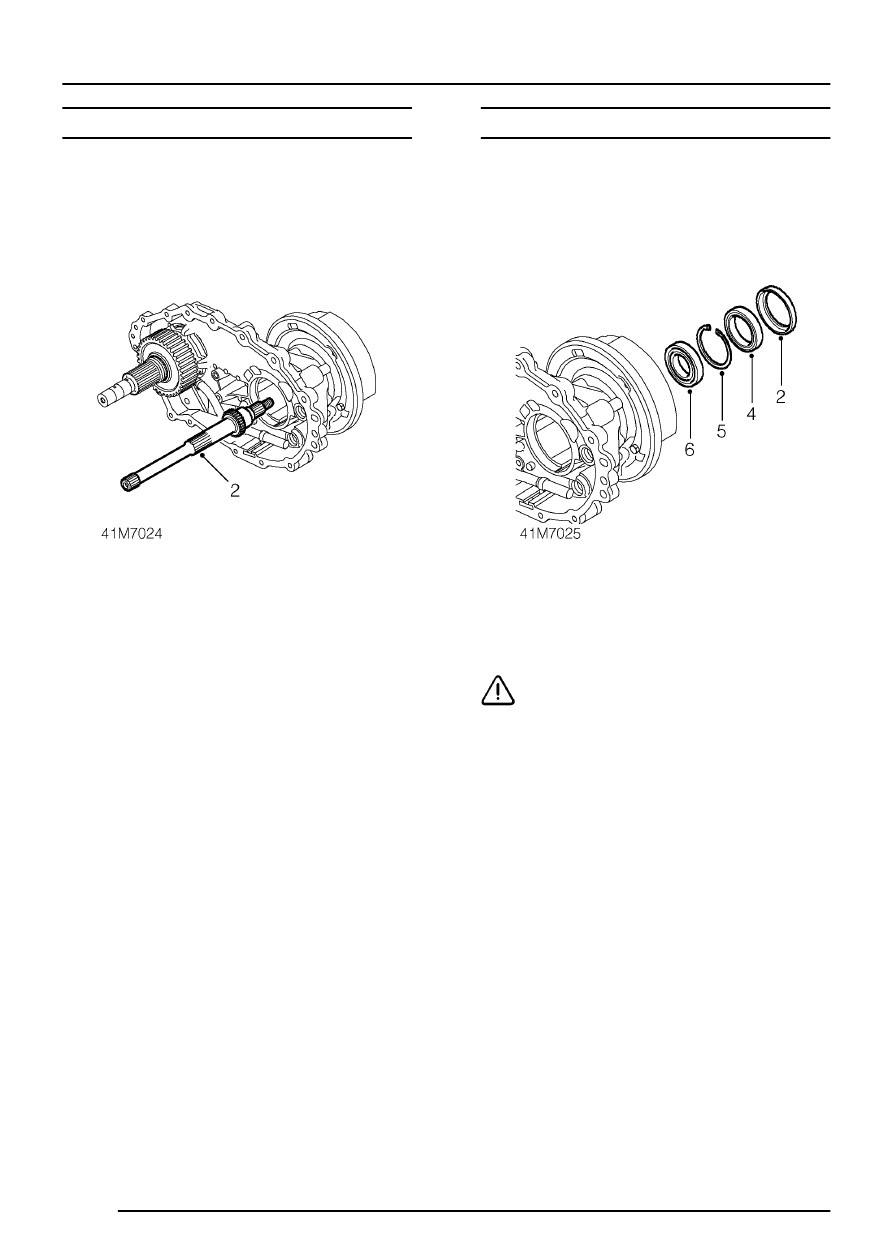

2. Remove rear output shaft from rear casing.

Refit

1. Fit rear output shaft to rear casing.
2. Fit differential unit.

See this section.

REAR OUTPUT SHAFT BEARING

Service repair no - 41.20.19/01

Remove

1. Remove rear output shaft.

See this section.

2. Remove dust shroud from transfer box rear

casing.

3. Using a flat bladed screwdriver free of rough

edges, ease oil seal from rear casing.

CAUTION: Do not mark sealing surface on
rear casing.

4. Remove rear output shaft oil seal.
5. Remove circlip retaining rear output shaft

bearing to rear casing.

6. Press out rear output shaft bearing from rear

casing.
