Borg Warner Transfer Box Rear Output Shaft Oil Seal Replacement
TRANSFER BOX
OVERHAUL
15
REAR OUTPUT SHAFT OIL SEAL
Service repair no - 41.20.54/01
Remove
1. Remove rear output shaft drive flange.
See
this section.

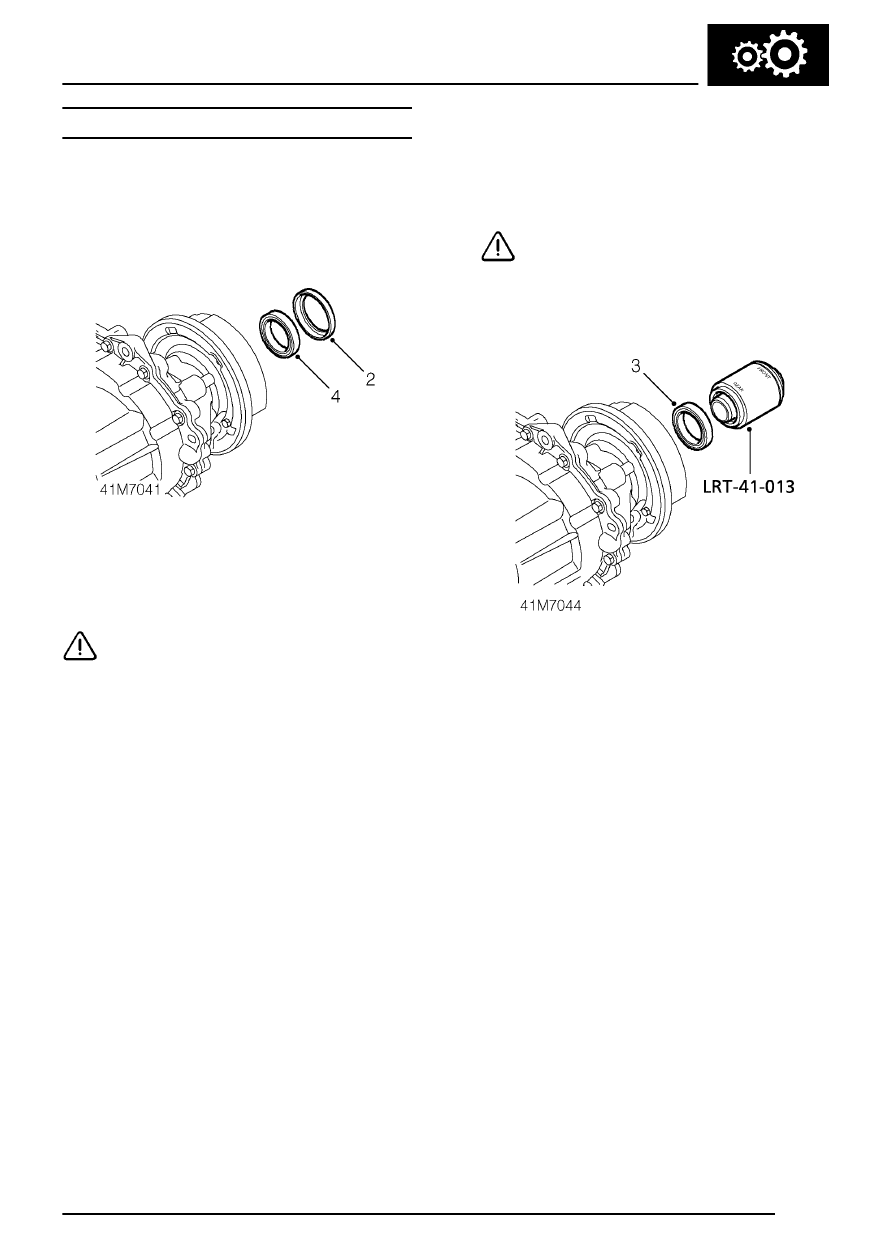

2. Remove dust shroud from transfer box rear
casing.
3. Using a flat bladed screwdriver free of rough
edges, ease oil seal from rear casing.
CAUTION: Do not mark sealing surface on
rear casing.
4. Remove rear output shaft oil seal.
Refit
1. Clean sealing area of rear casing and running
surface of drive flange. Ensure all traces of
rubber are removed.
CAUTION: Do not use a metal scraper as
this may damage sealing surfaces.
2. Lubricate sealing surfaces of seal with clean
gearbox oil.
3. Using LRT-41-013 fit oil seal to transfer box
rear casing.
4. Fit dust shroud to transfer box rear casing.
5. Fit rear output shaft drive flange.
See this
section.
