Heating and ventilation (Heater assembly): Description and operation

HEATING AND VENTILATION SYSTEM The heater assembly, comprising a matrix housed in a distribution unit and a variable speed blower motor, is Description located on one side of the engine compartment and attached directly to the fascia bulkhead. The heating and ventilation system is standard on all models. Air conditioning is an optional system which The heating controls are positioned on the outside of provides fully integrated climate control for the vehicle the instrument binnacle and cable linked to interior. mechanical flaps in the distribution unit.

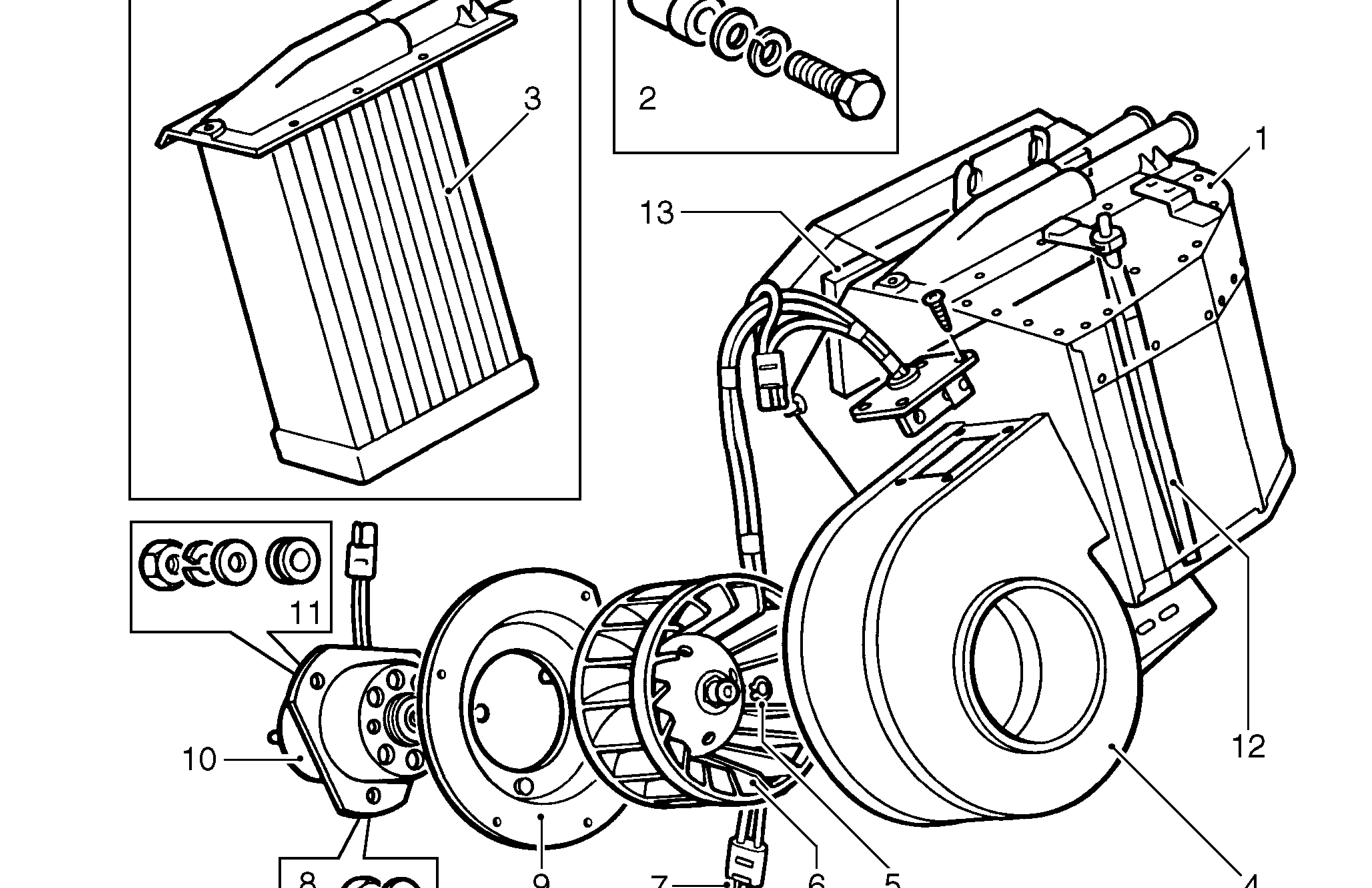

Heater assembly

1. Heater distribution unit
2. Fixings, heater to fascia bulkhead
3. Heater matrix 10. Blower motor
4. Blower motor housing 11. Fixings, blower motor to mounting bracket
5. Circlip, impeller to blower motor 12. Temperature flap, air flow to heater matrix
6. Impeller 13. Air flap, air supply to plenum chamber (heater
7. Resistor unit and harness connector
8. Fixings, blower motor mounting plate
9. Mounting plate, blower motor

duct)
