CRANKSHAFT REAR OIL SEAL Refit

Service repair no - 12.21.20

Remove

  1. Disconnect battery negative lead.
  2. Remove drive plate. See ENGINE 4.0 V8, Repair, Drive Plate

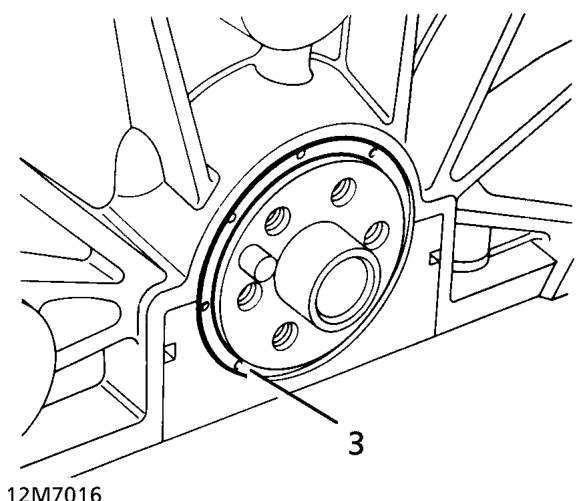

Crankshaft rear oil seal refit – Remove drive plate. See ENGINE 4.0 V8, Repair, Drive Plate
  1. Remove oil seal from location.

CAUTION: Do not damage seal location or 10. Fit drive plate. running surface on crankshaft.

  1. Reconnect battery negative lead.
  2. Ensure both seal location and running surface on crankshaft are clean.
  3. Ensure mating faces of flywheel and crankshaft are clean.
  4. Lubricate seal guide LRT-12-095 with clean engine oil. Position over crankshaft boss.

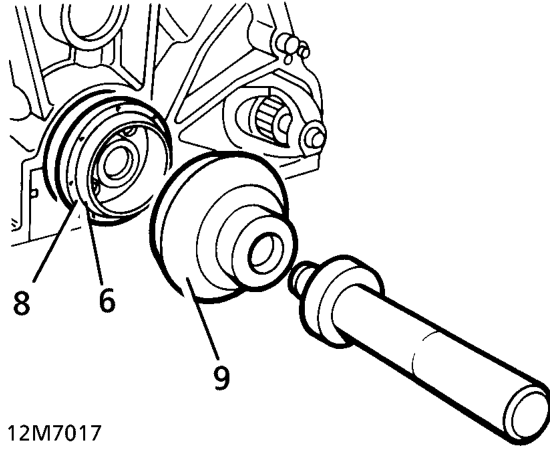

Crankshaft rear oil seal refit – Lubricate seal guide LRT-12-095 with clean engine oil. Position over crankshaft boss.
  1. Lubricate oil seal lip.
  2. Position seal squarely. Remove guide.
  3. Drift seal into location using LRT-12-091. See ENGINE 4.0 V8, Repair, Drive Plate
