Drive plate refit

DRIVE PLATE Refit

Service repair no - 12.53.13

Remove

1. Remove gearbox and transfer box assembly. See AUTOMATIC GEARBOX, Repair, 10. Fit clamp ring bolts and tighten to gearbox and transfer box assembly

11. Fit gearbox and transfer box assembly.
2. Remove 4 clamp ring bolts. Collect clamp ring.

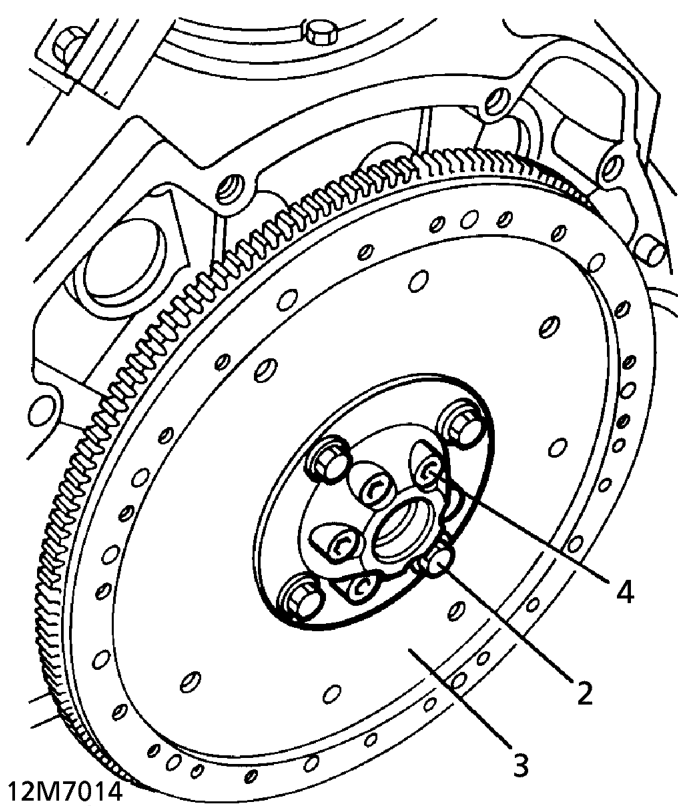

3. Remove flexible drive plate/starter ring gear assembly from hub aligner.
4. Remove 6 screws from hub aligner. Remove hub aligner from crankshaft. Collect shim.
5. Check drive plate for distortion or cracks. Check starter ring gear for chipped or broken teeth. If either component shows signs of damage, fit a new assembly.
6. Ensure all mating surfaces are clean.
7. Fit shim and hub aligner to crankshaft.
8. Fit hub aligner screws and tighten to 85 Nm, 63 lbf ft.
9. Fit drive plate and clamp ring. 45 Nm, 33 lbf ft.

• NOTE: It is only necessary to reshim the
• drive plate when a new crankshaft or hub
• aligner is fitted.

• See
• AUTOMATIC GEARBOX, Repair, gearbox
• and transfer box assembly
