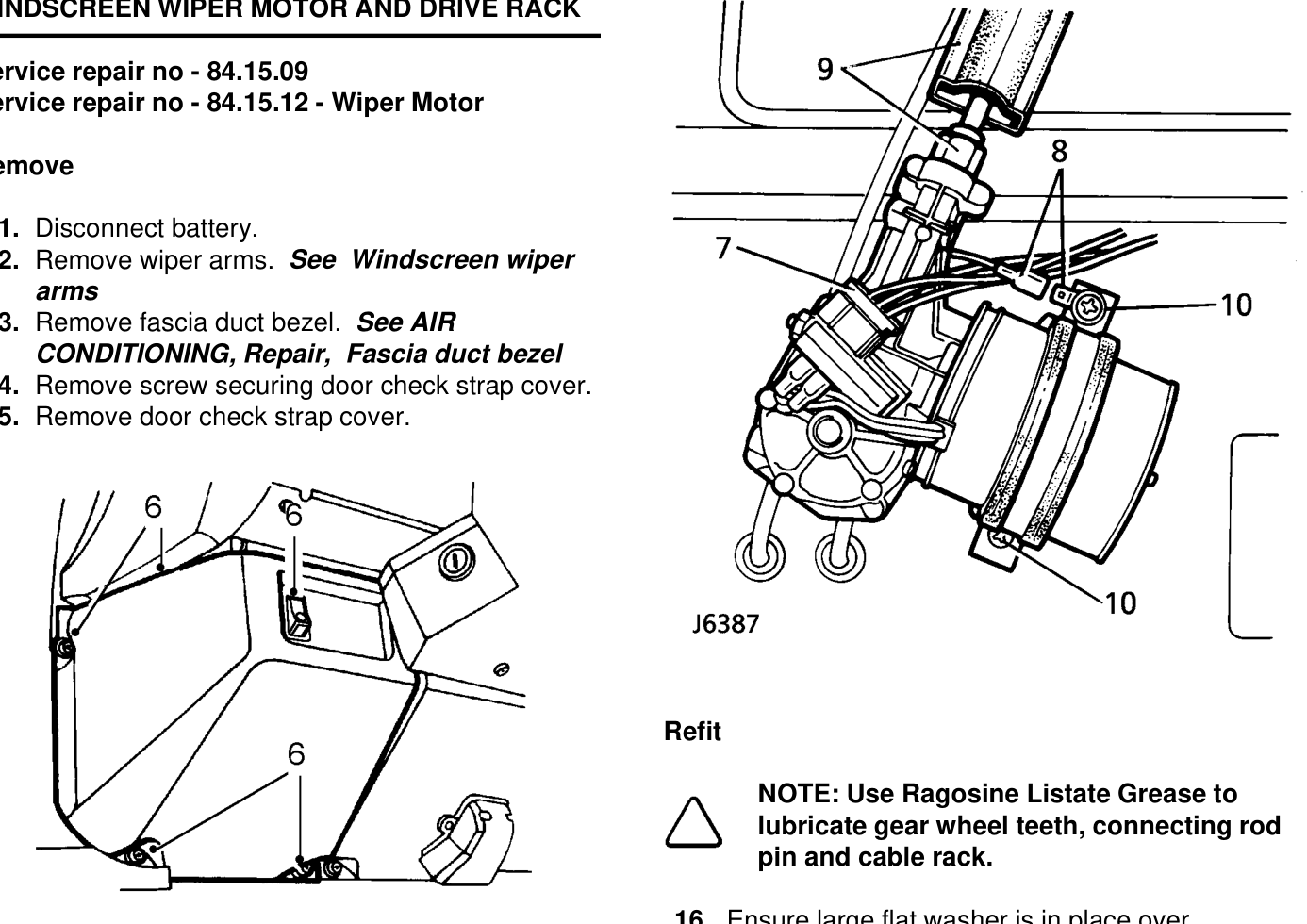

Windscreen wiper motor and drive rack

WINDSCREEN WIPER MOTOR AND DRIVE RACK

Service repair no - 84.15.09 Service repair no - 84.15.12 - Wiper Motor

Remove

1. Disconnect battery.
2. Remove wiper arms. See Windscreen wiper arms
3. Remove fascia duct bezel. See AIR CONDITIONING, Repair, Fascia duct bezel
4. Remove screw securing door check strap cover.
5. Remove door check strap cover.

Refit

• NOTE: Use Ragosine Listate Grease to
• lubricate gear wheel teeth, connecting rod
• pin and cable rack.

16. Ensure large flat washer is in place over
17. Connect drive rack to pin and fit connecting rod
6. Remove 3 screws and withdraw wiper motor cover. Disconnect instrument illumination switch
18. Fit gearbox cover and secure with screws.

multi-plug.

19. Feed wiper motor drive rack into tube until fully
7. Disconnect multi-plug from wiper motor.
8. Disconnect wiper motor earth lead. (Not
20. Loosely fit drive tube securing nut.

applicable on 97 MY vehicles).

21. Fit wiper motor securing strap and mounting
9. Lift rubber sleeve and slacken wiper motor to drive tube nut.
22. Fully tighten tube nut and fit rubber sleeve.
10. Remove 2 screws and release wiper motor
23. Reconnect earth lead and multi-plug.

retaining strap.

24. Fit wiper blades.
11. Fully unscrew tube nut.
25. Reconnect battery and test operation of wiper
12. Pull wiper motor and drive rack clear of tube and retrieve mounting pad and earth tag.
26. Fit instrument illumination switch multi-plug.

Do not carry out further dismantling if component

27. Fit cover and door check strap cover.

is removed for access only.

28. Refit fascia duct bezel.
13. Remove 4 screws and lift off gearbox cover.
14. Remove circlip and small plain washer securing connecting rod.
15. Remove connecting rod and disconnect drive rack.

crankpin.

over crankpin and secure with small plain washer and circlip.

seated.

pad. Align motor and tighten fixing screws.

See Windscreen wiper arms

motor and drive assembly. If necessary, adjust position of wiper blades.

See AIR CONDITIONING, Repair, Fascia duct bezel
