WINDSCREEN WIPER WHEEL BOXES

Service repair no - 84.15.25

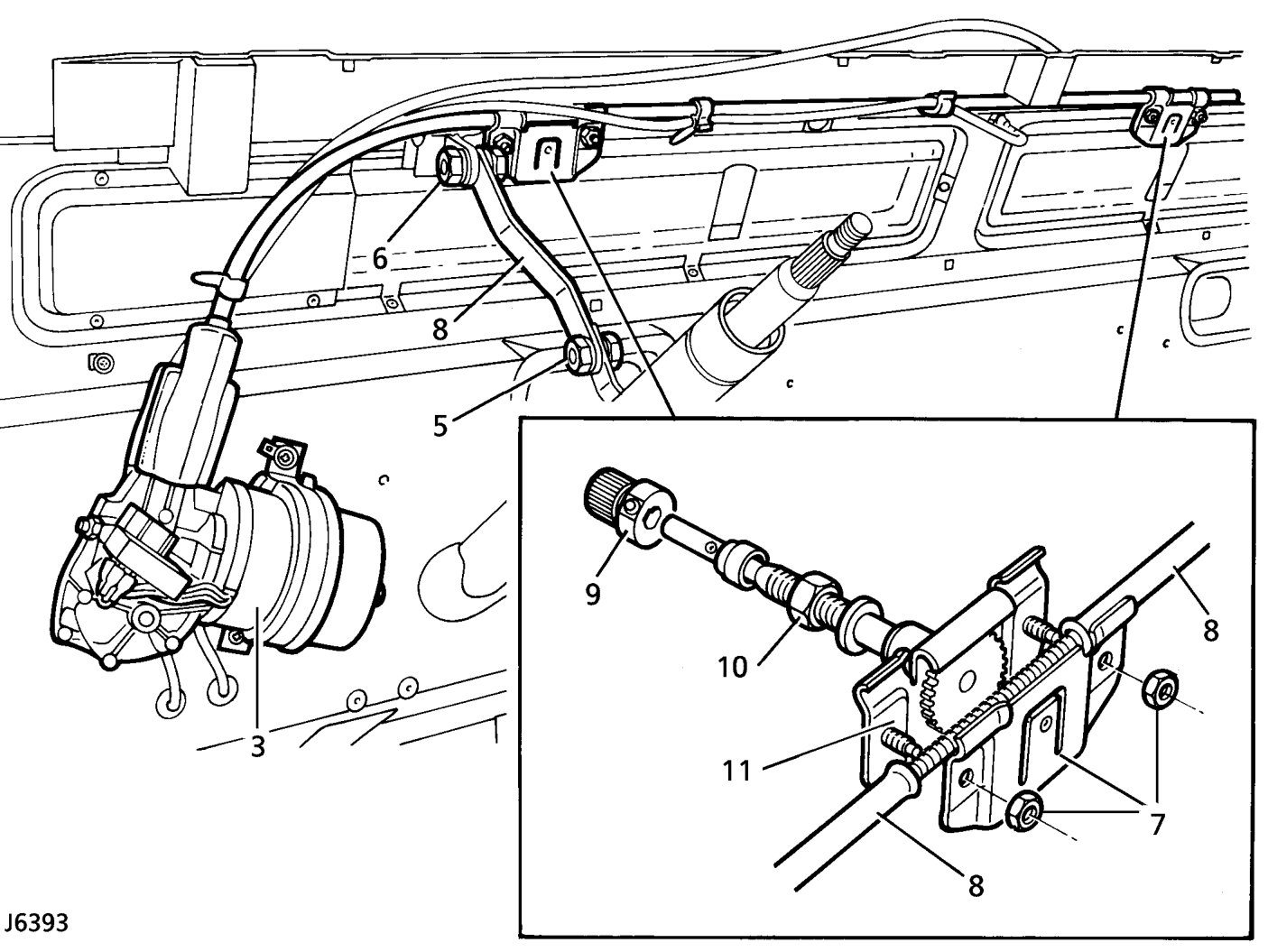

Windscreen wiper wheel boxes – Service repair no - 84.15.25

Remove

  1. Disconnect battery.
  2. Remove wiper arms. See Windscreen wiper arms
  3. Remove wiper motor and drive rack. See Wiper motor and drive rack
  4. Remove instrument housing, fascia crash pad, and ventilator grille panel. 10. Remove LH and RH wheelbox spindle nuts.
  5. Slacken steering column support rod lower 11. Remove wheel box assemblies from vehicle. fixing.
  6. Remove steering column upper support fixing.
  7. Slacken nuts to release back plates from LH and RH wheel boxes.
  8. Remove drive rack tubes.
  9. Slacken grub screws and remove wiper arm adaptors.
