Windscreen wiper arms windscreen wiper/washer switch

WINDSCREEN WIPER ARMS WINDSCREEN WIPER/WASHER SWITCH

Service repair no - 84.15.01 Service repair no - 84.15.34

Remove For remove and refit procedure See ELECTRICAL, Repair, Windscreen wiper/washer switch

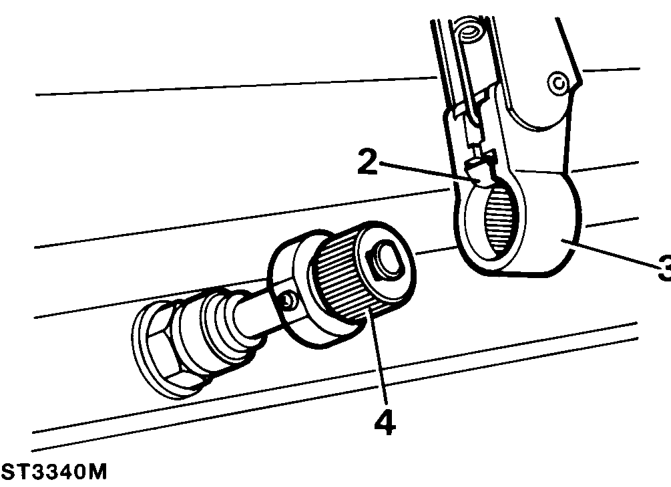

1. Pull wiper arm away from windscreen.
2. Using a small screwdriver, hold back spring clip which retains arm to spindle adaptor.
3. Pull wiper arm from splined adaptor.

REAR SCREEN WIPER AND WASHER SWITCHES

Service repair no - 84.30.27 - Rear Screen Washer

Switch Service repair no - 84.35.33 - Rear Screen Wiper Switch

For remove and refit procedure See ELECTRICAL, Repair, Heated rear screen, rear wiper and washer switches

Refit

4. Switch wiper motor to ’park’ position, with grub screw retaining adaptor, uppermost.
5. Push arm on to adaptor ensuring that wiper blade is just clear of windscreen surround rubber.
6. Operate wipers and, if necessary, adjust position of arms.
