Land Rover Defender 90 Workshop Manual (NAS)07 · Engine
07 · Engine

Rocker cover gasket - right hand

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › Rocker cover gasket - right hand
EngineRocker cover gasket - right hand

ROCKER COVER GASKET - RIGHT HAND

Service repair no - 12.29.41

Remove

  1. Disconnect battery negative lead.

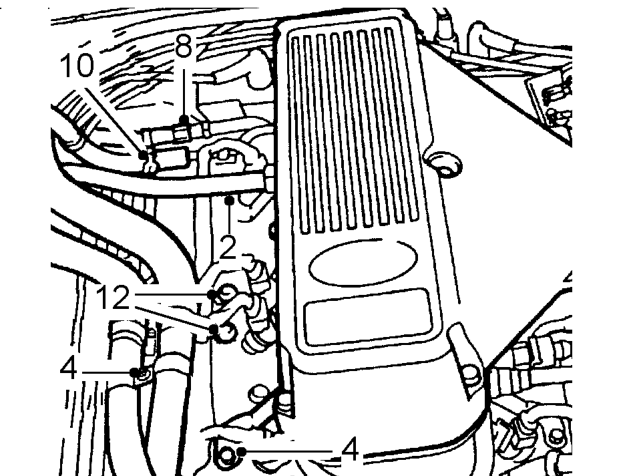

Rocker cover gasket - right hand – Disconnect battery negative lead.
  1. Release 4 spark plug leads from guide clips and
  2. Disconnect breather hose from plenum chamber and remove hose from rocker cover.
  3. Position container to collect coolant spillage.
  4. Remove bolt securing coolant pipe brackets together and nut securing bracket to manifold.
  5. Loosen clip and disconnect coolant return hose from manifold.
  6. Depressurise fuel system. See FUEL SYSTEM,

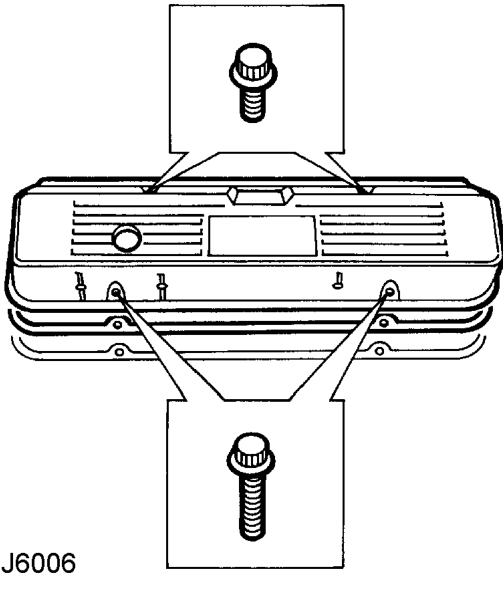

  7. Remove 4 bolts securing rocker cover to cylinder

Adjustment, fuel system depressurise

  1. Position cloth to absorb fuel spillage.
  2. Remove rocker cover.
  3. Disconnect fuel feed hose union.
  4. Remove and discard rocker cover gasket.

CAUTION: Plug the connections.

  1. Loosen clip and disconnect fuel return hose.

CAUTION: Plug the connections.

  1. Remove 2 bolts securing engine harness bracket to manifold.
Caution: plug the connections. – Remove 2 bolts securing engine harness bracket to manifold.

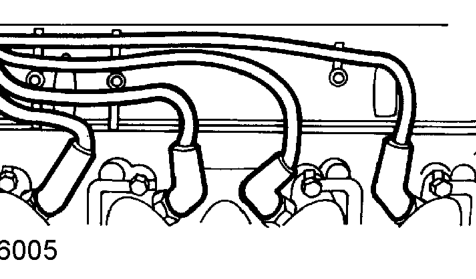

disconnect leads from spark plugs.

Caution: plug the connections. – disconnect leads from spark plugs.

head.
