GEARBOX AND TRANSFER BOX ASSEMBLY

Service repair no - 44.20.04/99

Remove

  1. Position vehicle on ’4-post’ ramp.
  2. Select LOW range gear and leave vehicle in neutral.
  3. Disconnect battery negative lead.
  4. Drain gearbox oil. See SECTION 10, Maintenance, under vehicle maintenance
  5. Drain transfer gearbox oil. See SECTION 10, Maintenance, under vehicle maintenance
  6. Remove centre console. See CHASSIS AND BODY, Repair, centre console

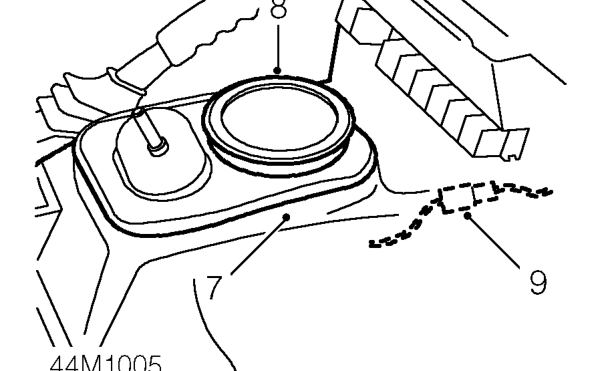

Gearbox and transfer box assembly – Remove centre console. See CHASSIS AND BODY, Repair, centre console
  1. Remove split pin and clevis pin securing hand
  2. Remove carpet from transmission tunnel.
  3. Remove hi-low selector housing cover from tunnel.
  4. Working through hi-low gear lever aperture, disconnect inhibitor/reverse light switch multiplug.
  5. Remove 2 cable ties securing gearbox and transfer box breather pipes to harness.

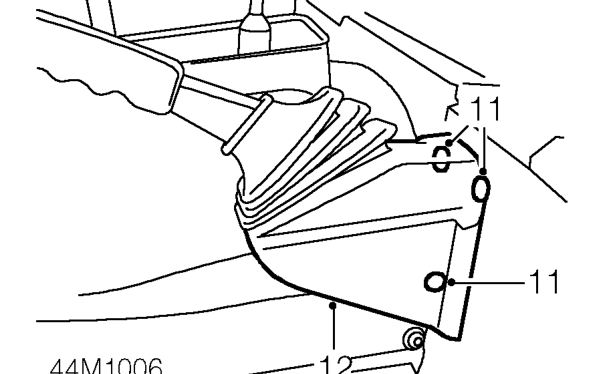

Gearbox and transfer box assembly – Remove 2 cable ties securing gearbox and transfer box breather pipes to harness.
  1. Remove 2 screws securing fan cowl to upper
  2. Release 2 clips securing upper fan cowl.
  3. Remove upper fan cowl.
  4. Remove 3 trim studs securing hand brake gaiter.
  5. Release hand brake gaiter to access cable linkage.

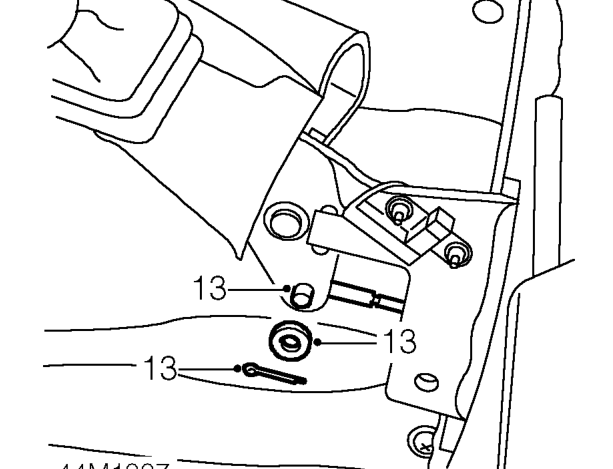

Gearbox and transfer box assembly – Release hand brake gaiter to access cable linkage.

brake cable to lever.

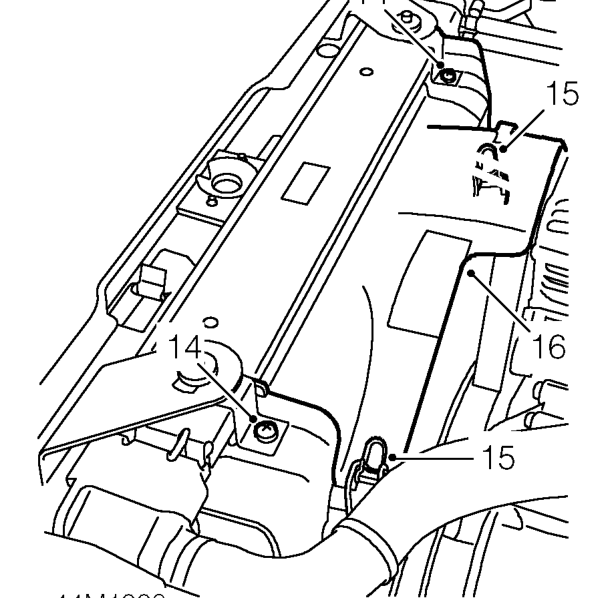

Gearbox and transfer box assembly – brake cable to lever.

retaining brackets.
