TORQUE CONVERTER PUMP AND MAIN HOUSING

Service repair no - 44.17.04 Service repair no - 44.20.11 - Intermediate plate gasket Remove Service repair no - 44.32.01 - Pump assembly Service repair no - 44.32.07 - Pump oil seal

  1. Remove gearbox and transfer box assembly, See Gearbox and transfer box assembly Remove
  2. Remove gearbox and transfer box assembly, See Gearbox and transfer box assembly
Torque converter pump and main housing – Remove gearbox and transfer box assembly, See Gearbox and transfer box assembly

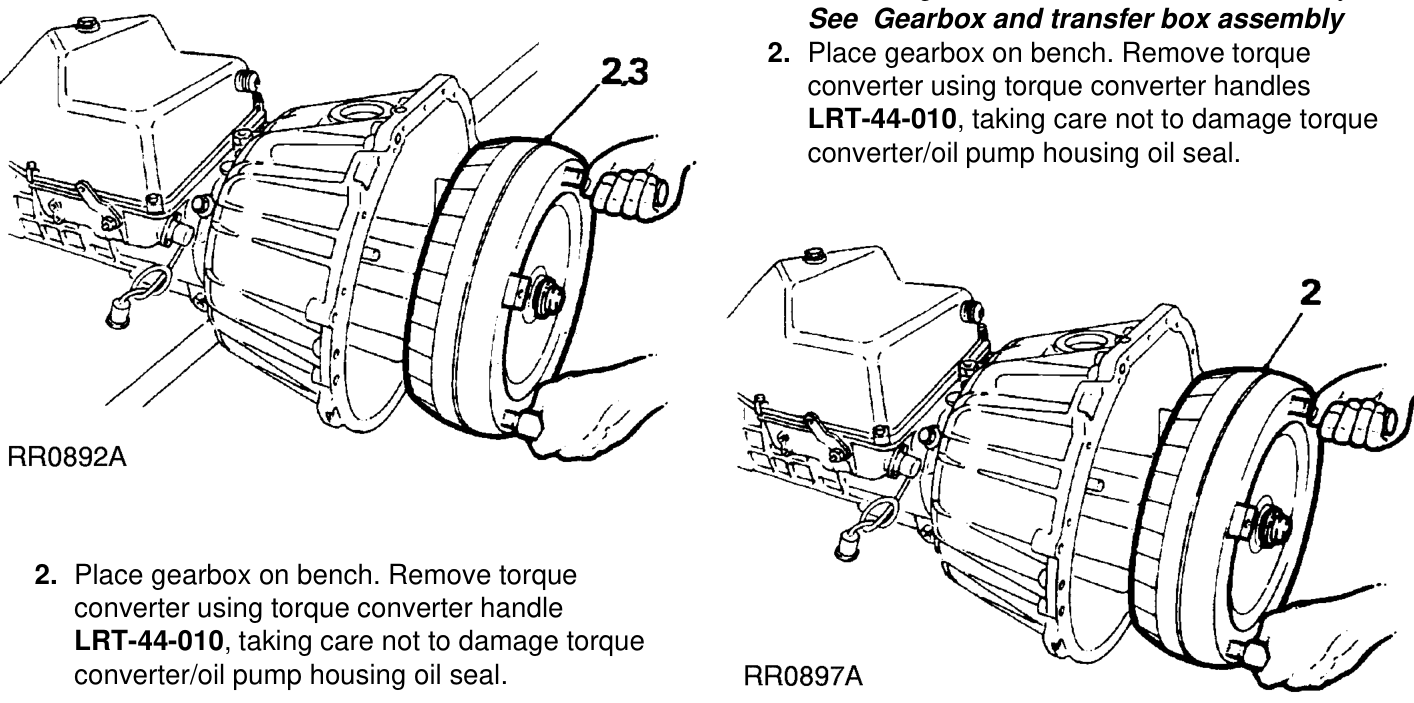

  1. Place gearbox on bench. Remove torque converter using torque converter handles LRT-44-010, taking care not to damage torque converter/oil pump housing oil seal.
  2. Place gearbox on bench. Remove torque converter using torque converter handle LRT-44-010, taking care not to damage torque converter/oil pump housing oil seal.

Refit

  1. Fit NEW torque converter using torque converter handles LRT-44-010. Check dimension from converter fixing boss to converter housing face is 50 mm, 1.968 in. This shows converter is correctly seated in housing.
  2. Refit gearbox and transfer box assembly. See Gearbox and transfer box assembly

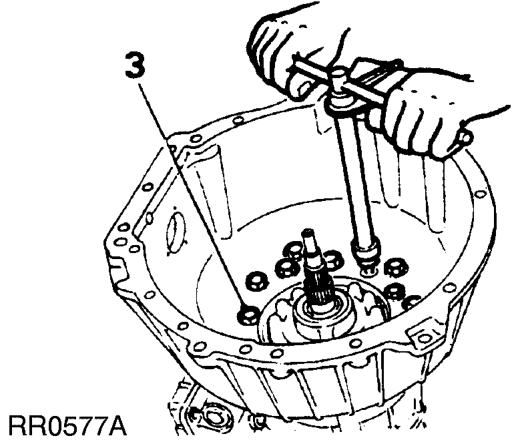

  3. Remove 12 bolts (inner ring of bolts).
Torque converter pump and main housing – Remove 12 bolts (inner ring of bolts).
  1. Remove bell housing and pump assembly, discard gasket.
  2. Remove 8 bolts from rear of pump.
