INHIBITOR SWITCH

Service repair no - 44.15.19

Remove

1. Site vehicle on a four post ramp.
2. Disconnect battery negative lead. Raise vehicle.
20. Locate selector linkage setting gauge LRT-44-002 in position and gently press control unit forwards as shown. Tighten bolts to 8 Nm (6 lbf.ft).
21. Remove setting gauge.
22. Refit gearbox fluid pan See Fluid pan gasket and screen; Refit.
23. Lower vehicle on ramp.
24. Adjust kickdown cable See Adjustment, Kickdown cable adjustment.
25. Reconnect battery negative lead.
26. Refill gearbox oil using correct grade of oil See LUBRICANTS, FLUIDS AND CAPACITIES, Information, Recommended Lubricants and Fluids.

Refit

10. Fit switch to casing.
11. Secure with retaining plate and bolt.
12. Connect multiplug to harness.
13. Reconnect battery and remove vehicle from

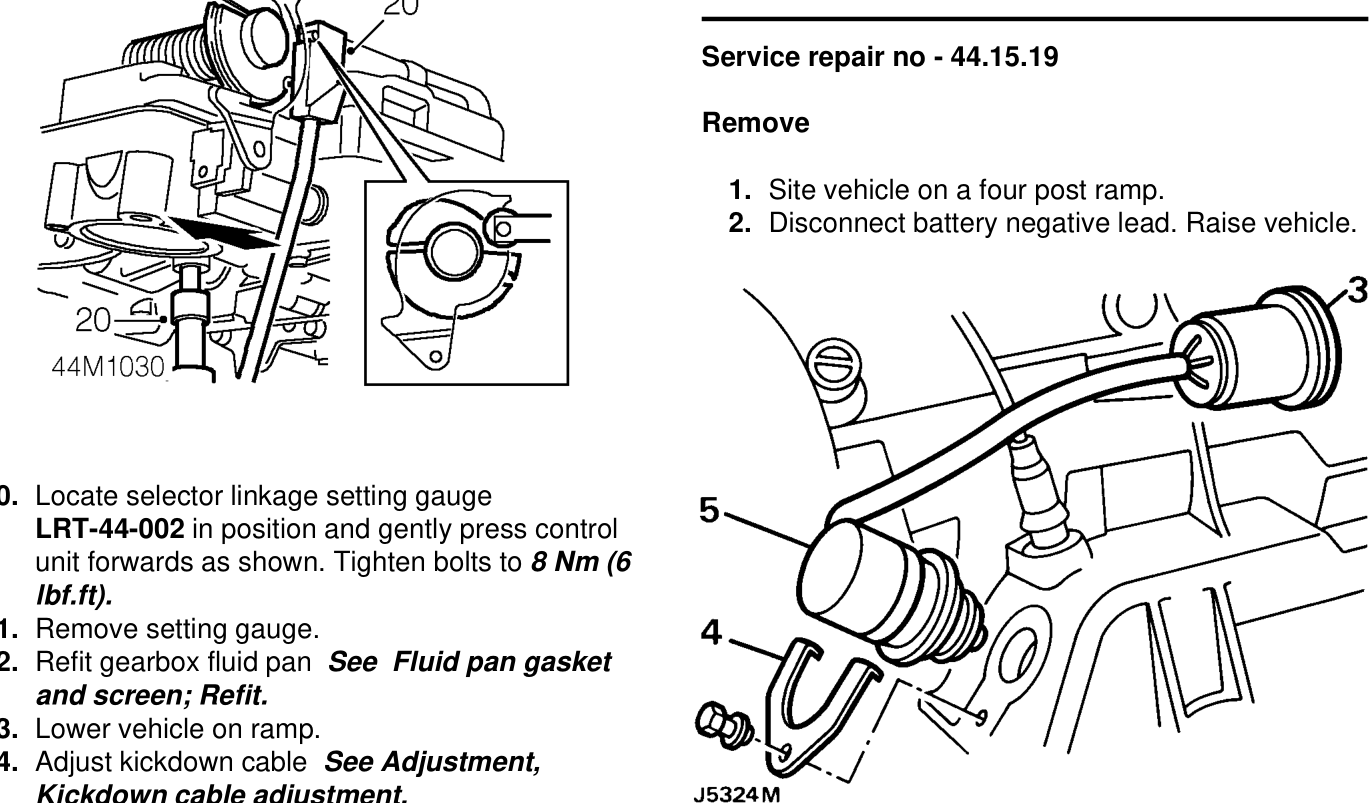

3. Disconnect inhibitor switch multiplug.
4. Remove inhibitor switch retaining plate.
5. Remove inhibitor switch.
6. Remove and discard ’O’ ring seal.
7. Clean inhibitor switch.
8. Clean mating face on casing.
9. Fit and lubricate NEW ’O’ ring seal to switch.

ramp.
