Drive plate refit

DRIVE PLATE Refit

Service repair no - 12.53.13

Remove

1. Remove gearbox and transfer box assembly. See AUTOMATIC GEARBOX, Repair, 10. Fit clamp ring bolts and tighten to gearbox and transfer box assembly
11. Fit gearbox and transfer box assembly.

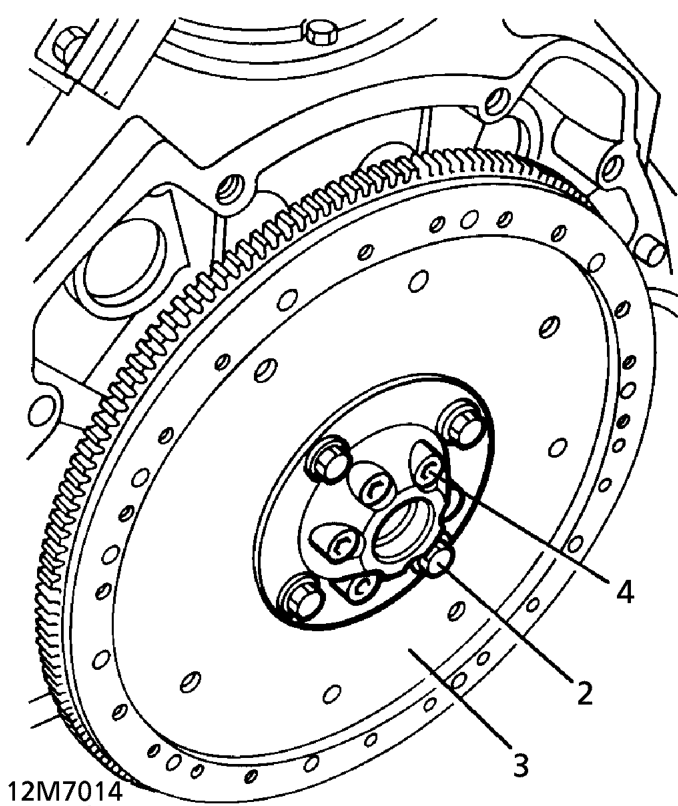

2. Remove 4 clamp ring bolts. Collect clamp ring.
3. Remove flexible drive plate/starter ring gear assembly from hub aligner.
4. Remove 6 screws from hub aligner. Remove hub aligner from crankshaft.
5. Check drive plate for distortion or cracks. Check starter ring gear for chipped or broken teeth. If either component shows signs of damage, fit a new assembly.
6. Ensure all mating surfaces are clean.
7. Fit hub aligner to crankshaft.
8. Fit hub aligner screws and tighten to 85 Nm (63 lbf.ft).
9. Fit drive plate and clamp ring. 45 Nm (33 lbf.ft). See AUTOMATIC GEARBOX, Repair, gearbox and transfer box assembly; Refit
