Refit engine assembly

Refit ENGINE ASSEMBLY

15. Clean mating faces of rocker cover and cylinder Service repair no - 12.41.01 head.
16. Fit rubber gasket to rocker cover. Remove
17. Fit rocker cover and gasket to cylinder head
18. Fit rocker cover bolts, ensuring short bolts are fitted inboard, and tighten by diagonal selection to: Stage 1 - 4 Nm (3 lb.ft). Stage 2 - 8 Nm (6 lb.ft). Stage 3 - Re-torque to 8 Nm (6 lb.ft).
19. Connect plug leads and secure to guide clips.
20. Position harness bracket to inlet manifold and tighten bolts.
21. Connect fuel feed and return hoses.
22. Connect coolant hose to inlet manifold and tighten clip.
23. Secure coolant pipe brackets
24. Fit breather hose.
25. Refill cooling system.
26. Reconnect battery negative lead.
10. Collect compressor heat shield.
11. Tie compressor aside with string.
1. Position vehicle on ’4-post’ ramp.
2. Drain engine oil. See MAINTENANCE , under vehicle maintenance
3. Remove bonnet. See CHASSIS AND BODY, Repair, bonnet
4. Remove radiator. See COOLING SYSTEM, Repair, radiator
5. Restrain PAS pump pulley with an Allen key, and loosen 3 PAS pump pulley bolts.
6. Using a 15 mm ring spanner, release auxillary drive belt tension and release belt from alternator pulley.
7. Remove drive belt.

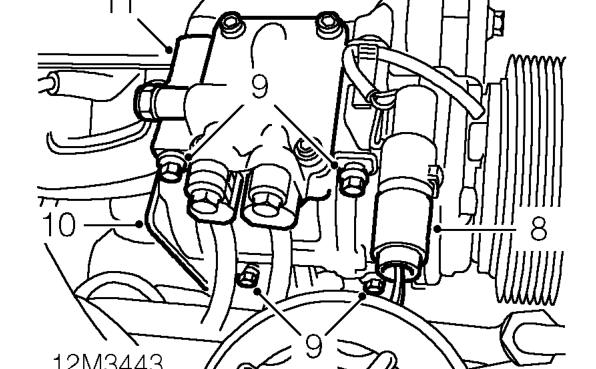

8. Disconnect A/C compressor multiplug.
9. Remove 4 bolts securing compressor to mounting bracket.
