Land Rover Defender V8i Workshop Manual Supplement18 · Chassis and body
18 · Body & interior

Bonnet

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair › Bonnet
Chassis and bodyBonnet

BONNET

Service repair no - 76.16.01.99

Remove

Bonnet – Service repair no - 76.16.01.99

Refit

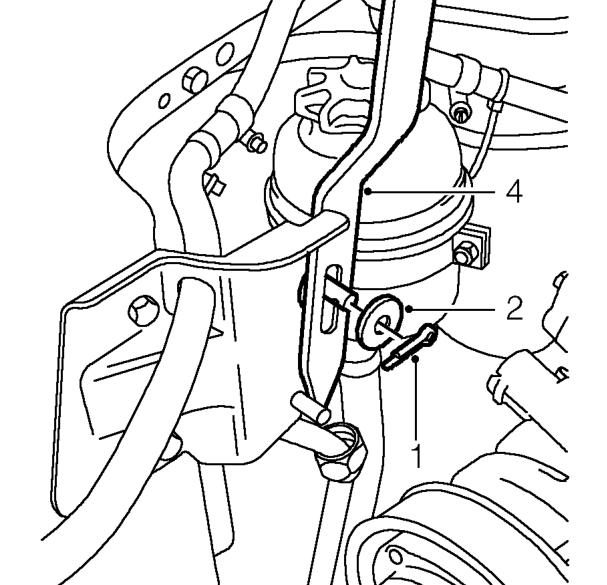

  1. Remove split pin from bonnet stay lower pivot.
  2. Remove washer and anti-rattle washer from pivot.
  3. Position suitable chock to support bonnet in a position to gain access to hinge nuts. 10. Align hinges to bonnet markings.
  4. Release bonnet stay from pivot, fold stay up into 11. Tighten hinge retaining screws. the bonnet and rest bonnet onto chock. 12. Raise bonnet from chock and connect stay to
  5. Fit anti-rattle and plain washers to pivot. Secure
  6. Release stay and close bonnet to check
Bonnet – Release stay and close bonnet to check

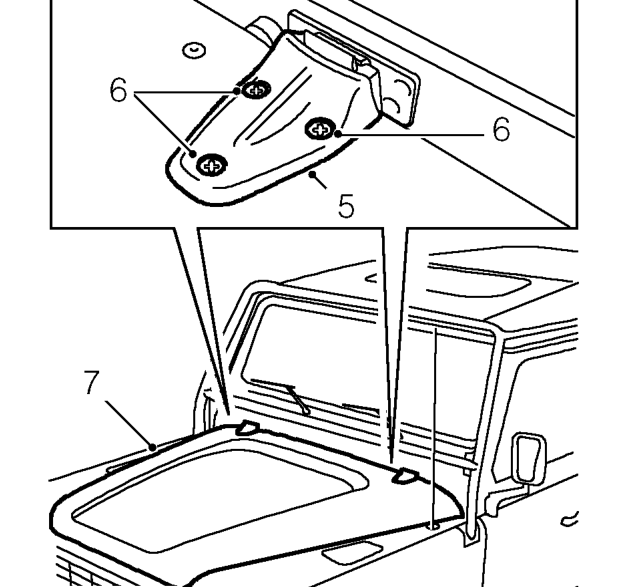

  1. Mark outline of hinge on bonnet.
  2. Remove 6 nuts and screws securing bonnet to hinges.
  3. With assistance, remove bonnet.
  4. With assistance, position bonnet to hinges.
  5. With assistance, fit screws through hinges and bonnet and fit washers and nuts to screws.

pivot.

with split pin.

alignment and operation.
