Chassis and bodyRadiator grille grille panel

RADIATOR GRILLE GRILLE PANEL

Service repair no - 76.55.03 Service repair no - 76.55.06

Remove Remove

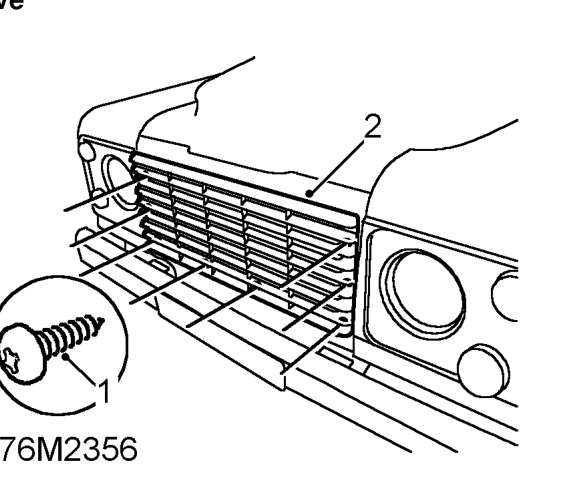

Remove remove – Service repair no - 76.55.03 Service repair no - 76.55.06

Refit

  1. Remove 8 screws securing grille to front panel.
  2. Remove radiator grille 10. Fit radiator grille.

Refit

  1. Position radiator grille to front panel.
  2. Secure grille with screws.
  3. Remove radiator grille. See radiator grille
  4. Disconnect multiplug from condenser fan fly-lead.
  5. Loosen bolts securing top panel and grille panel to fenders.
  6. Remove bolts securing securing grille panel to wings.
  7. Remove grille panel.
  8. Position grille panel and fit bolts to wing, finger tight.
  9. Fit plastic nuts to lower fixing, each side
  10. Fit screws to top panel.
  11. Align grille panel and tighten all fixings. See radiator grille; Refit
