FRONT SEAT BELTS

Service repair no - 76.73.13

Remove

1. Remove cap and unscrew seat belt guide bracket fixing bolt from ’B/C’ post.
2. Remove 3 bolts and plain washers securing seat belt mounting bracket to body on outside of seat base.
3. Prise seat belt retaining clip from side of seat mounting and remove trim studs.
4. Unscrew bolt and remove seat belt inertia reel from roll-over bar mounting bracket.
5. Remove seat belt and inertia reel assembly.

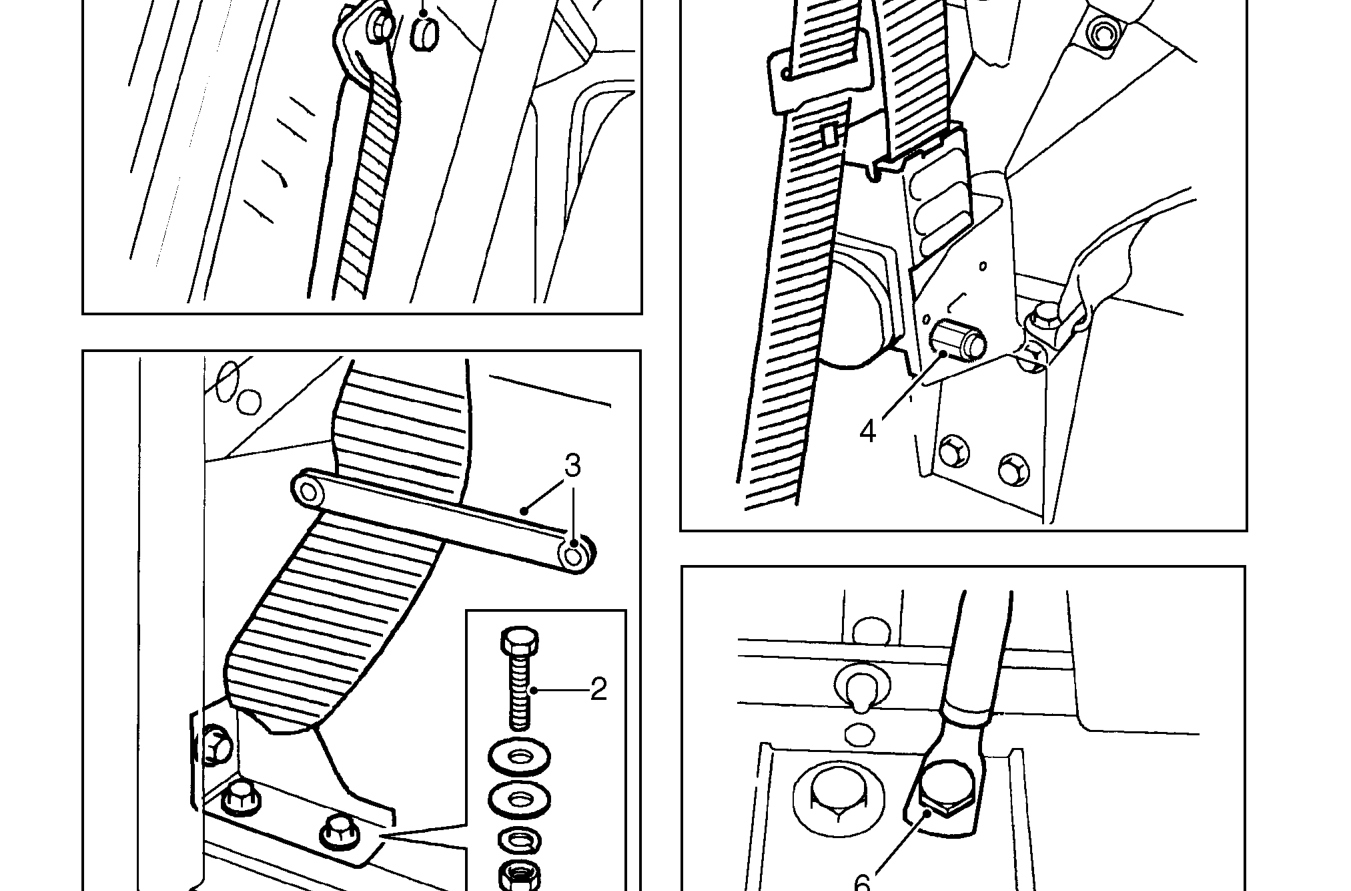

6. Unscrew bolt and washer and remove seat belt buckle stalk from roll-over mounting bracket.

Refit

7. Position stalk on roll-over bar mounting bracket 10. Fit seat belt retaining clip to side of seat base and tighten fixing bolt to 32 Nm (24 lbf.ft).
8. Secure seat belt inertia reel to roll-over bar 11. Extend belt from inertia reel, secure slide bracket mounting and tighten bolt to 32 Nm (24 lbf.ft).
12. Refit fixing bolt cap.
9. Secure seat belt backet to floor on outside of seat base and tighten bolts to 23 Nm (17 lbf.ft).

and secure with trim studs.

to ’B/C’ post and tighten bolt to 32 Nm (24 lbf.ft).
