Refit rear speaker panel

Refit REAR SPEAKER PANEL

13. Supporting from both sides, position roll-over Service repair no - 76.13.11 bar, engage struts in rear corners and front of side panels. Align on floor. Remove
14. Secure front seat belt inertia reels and rear seat belts to roll-over bar mountings. Tighten bolts to 32 Nm (24 lbf.ft).
15. Raise roll-over bar assembly and secure to roof mounting brackets. Tighten bolts to 45 Nm (33 lbf.ft).
16. Secure roll-over bar to wheel arches. Tighten bolts to 45 Nm (33 lbf.ft).
17. Secure roll-over bar to body side mounting brackets, tightening bolts to 45 Nm (33 lbf.ft).
18. Secure centre section to main roll-over bar, but do not fully tighten fixing bolts at this stage.
19. Secure seat belt stalks and roll-over bar floor mounting brackets to chassis. Tighten bolts to 32 Nm (24 lbf ft.
20. Fully tighten roll-over bar centre section retaining bolts to 45 Nm (33 lbf.ft).
21. Fit centre console. See Centre console; Refit
22. Fit side trim panel. See Side trim panel; Refit
23. Fit rear end trim panels. See Rear end trim panel; Refit
24. Fit rear seat squabs. See Rear seat squabs; Refit

Refit

10. Fit rear speaker.
11. Fit rear end trim panel.
1. Raise seat cushion and fit stowage strap.
2. Remove rear end trim panel. See rear end trim panel
3. Remove rear speaker. See ELECTRICAL, Repair, rear speaker

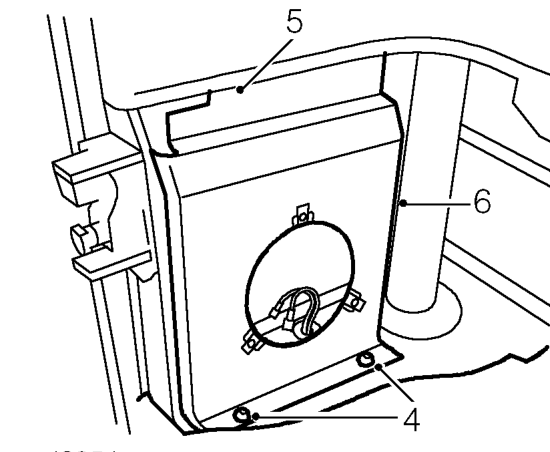

4. Peel back carpet and remove 2 screws securing speaker panel to wheel arch.
5. Prise top edge of panel down to release from body channel.
6. Remove speaker panel.
7. Position speaker panel on wheel arch.
8. Press top edge of panel down firmly and locate under body channel.
9. Secure speaker panel to wheel arch with screws and reposition carpet. See ELECTRICAL, Repair, rear radio speaker; Refit See rear end trim panel; Refit
