Interior roll-over bar

INTERIOR ROLL-OVER BAR

Service repair no - 76.11.40

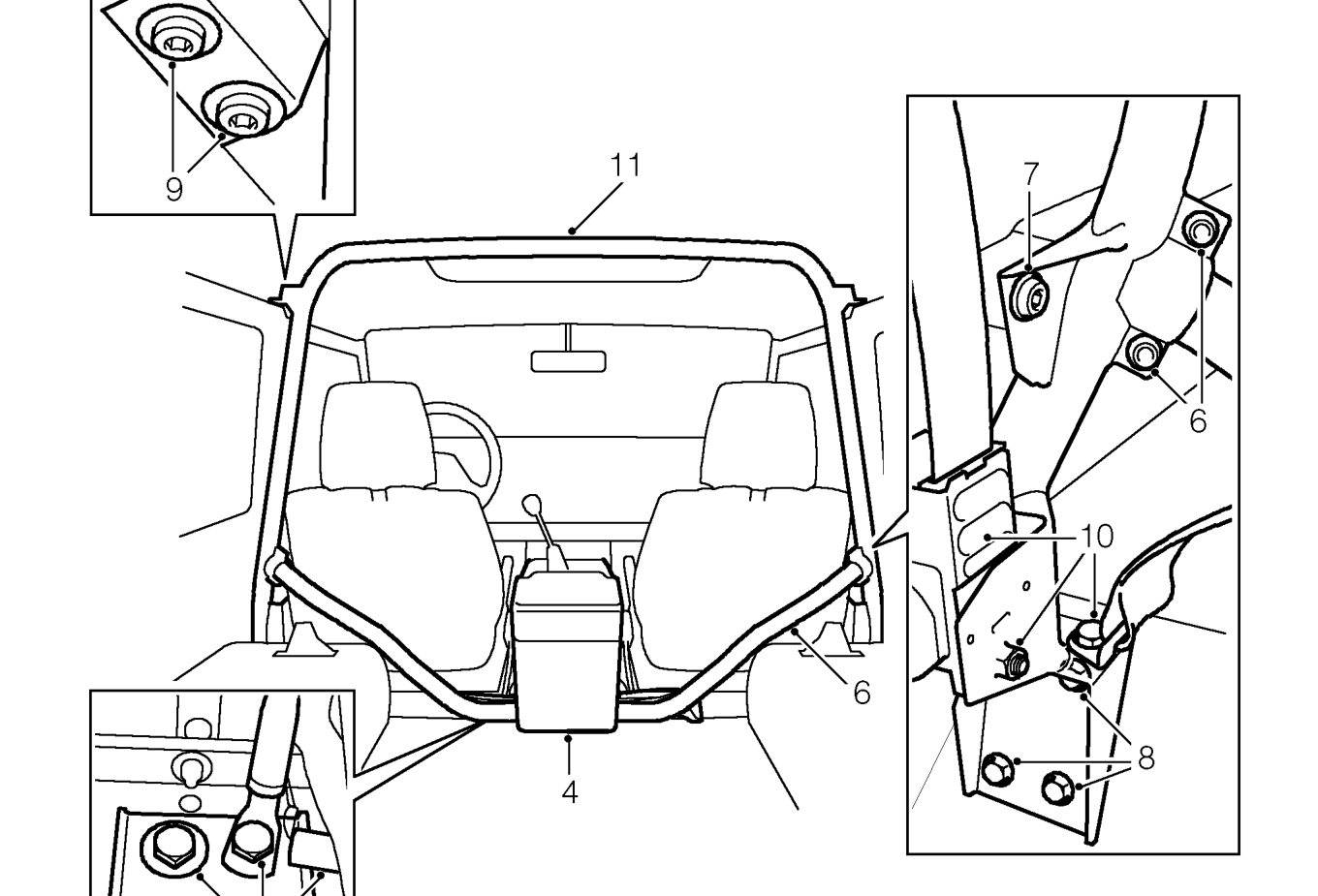

Remove

1. Remove rear seat squabs. See rear seat squab
2. Remove rear end trim panels. See rear end trim panel 10. Unscrew retaining bolts, from both sides, and
3. Remove side trim panels. See side trim panel
4. Remove centre console. See centre console
5. Remove 4 bolts securing centre section of 11. Supporting from both sides, raise and tilt roll-over bar and seat belt stalks to floor.
6. Remove 2 torx bolts and nuts from both sides 12. Remove roll-over bar from vehicle. and detach centre section of roll-over bar assembly.
7. Remove torx bolt, from both sides, securing roll-over bar to body side mounting brackets.
8. Remove 3 bolts and washers, from both sides, securing lower roll-over bar brackets to front of wheelarch.
9. Remove 2 torx bolts and washers, from both sides, securing roll-over bar upper mountings to roof fixing brackets and carefully lower complete assembly to floor.

remove front seat belt inertia reels and rear seat belts from roll-over bar mounting.

roll-over bar rearwards to clear wheel arches.

NOTE: Assistance may be required to remove roll-over bar.
