REAR SEAT BELTS

Service repair no - 76.73.18

Remove

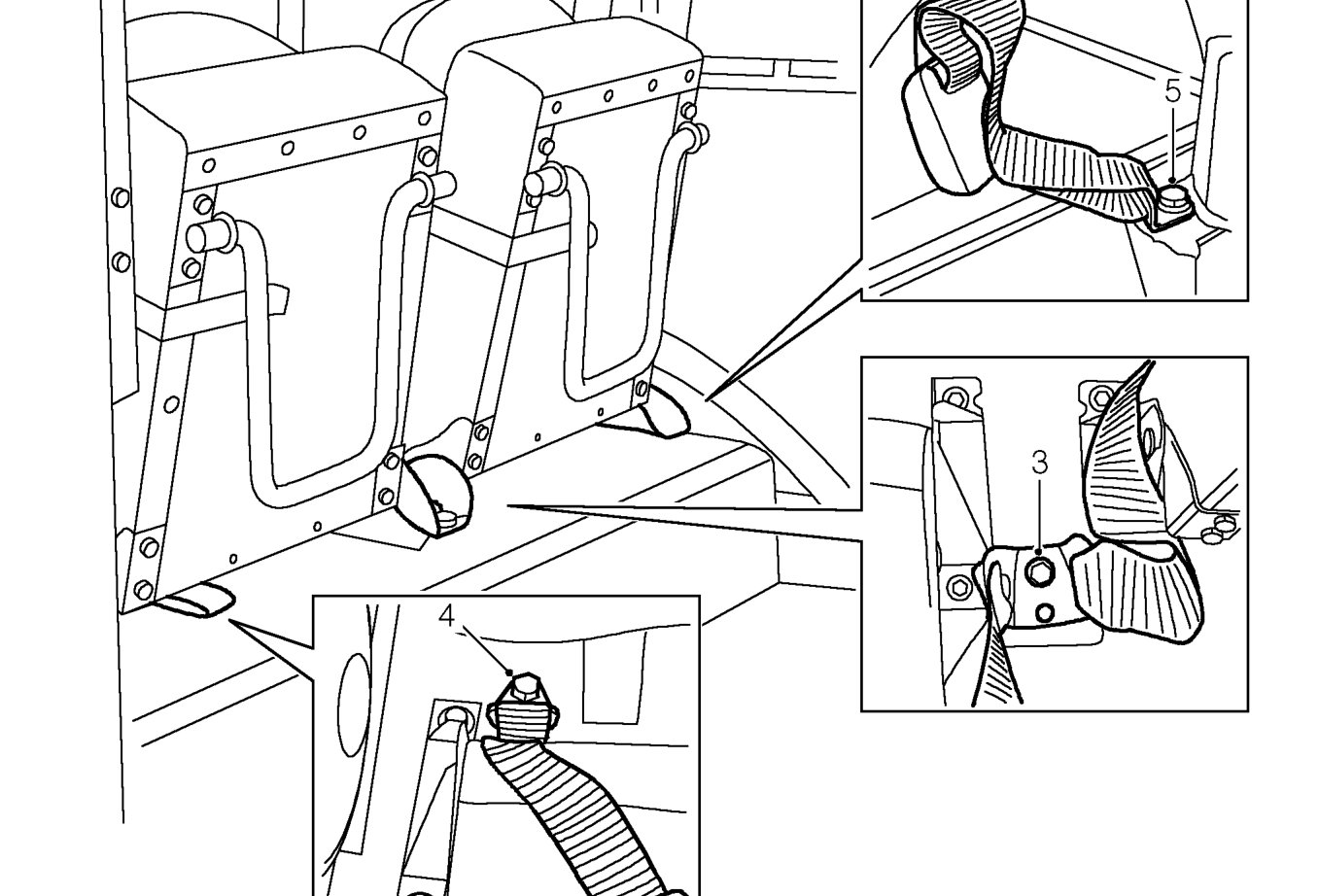

Rear seat belts – Service repair no - 76.73.18
  1. Release belt straps from buckles on both seats.
  2. Raise both seat cushions and secure with stowage straps.
  3. Unscrew bolt and remove bracket and inner seat belt straps. Refit
  4. Unscrew bolt and remove rear seat buckle strap from wheel arch.
  5. Unscrew bolt and remove front seat buckle strap from interior roll-over bar mounting.
  6. Reverse removal procedure, ensuring seat belt fixing bolts are tightened to 32 Nm (24 lbf.ft).
