Exterior roll-over bar

EXTERIOR ROLL-OVER BAR

Service repair no - 76.11.39

Remove

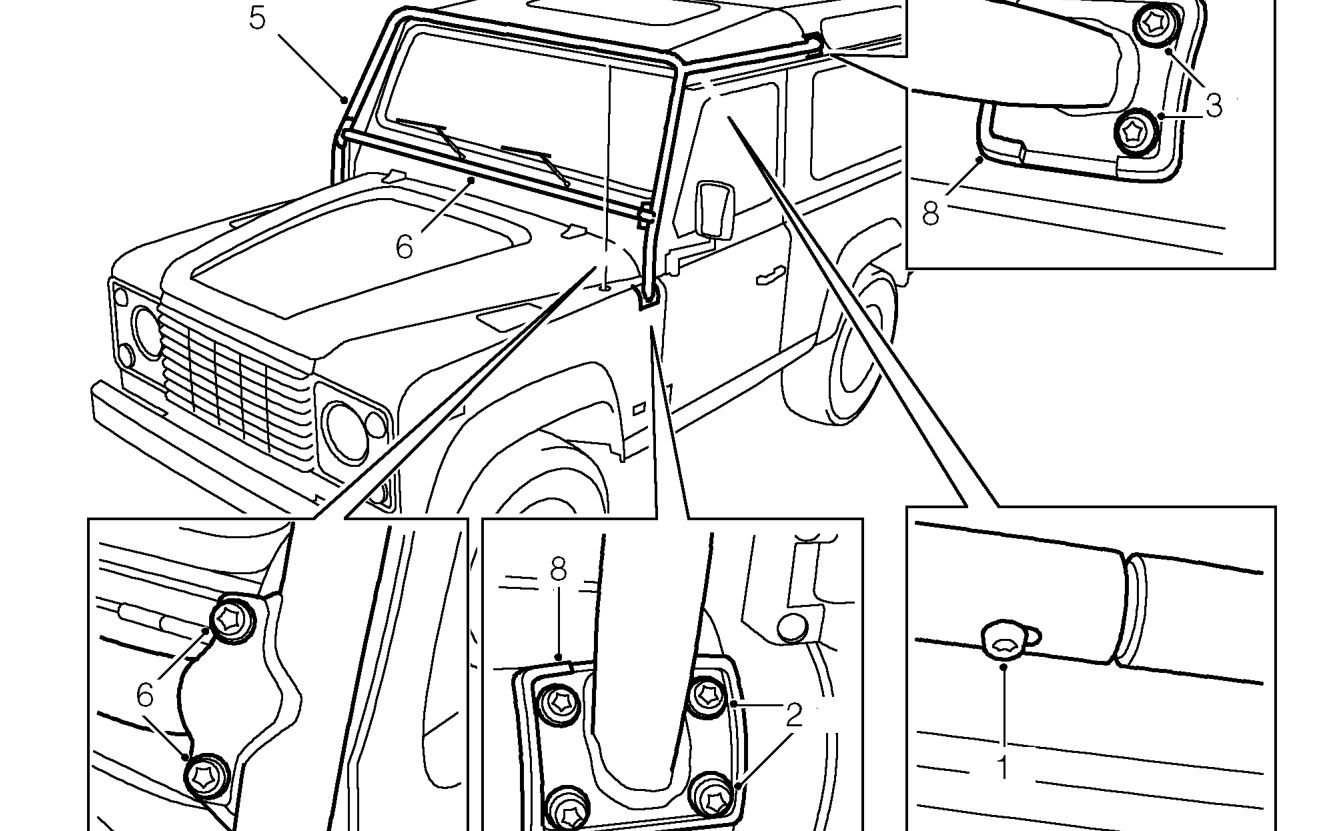

1. Remove torx bolt, from both sides, securing top of roll-over bar to roof mounted bar.
2. With assistance to support roll-over bar at windscreen, remove 4 torx bolts, from both sides, securing roll-over bar to wing mounting.
3. Remove two torx bolts, from both sides, securing top bar to roof mounting.
4. Slide top bars rearwards to disengage from main roll-over bar assembly.
5. Lift main roll-over bar assembly from vehicle.
6. If necessary, remove 2 torx bolts and nuts, from both sides, and detach lower cross bar from main roll-over bar.

Refit 10. Slide top bars into main roll-over bar, position on

7. Locate lower cross bar into main roll-over bar mounting brackets and secure with torx bolts 11. Secure roll-over bar to both wing mountings with and nuts to 25 Nm (18 lbf.ft).
8. Ensure rubber gaskets are fitted correctly to 12. Secure top bars to main roll-over bar and tighten roll-over bar mounting brackets.
9. With assistance, lift roll-over bar assembly and position on wings.

roof mounting and secure with torx bolts to 25 Nm (18 lbf ft.

torx bolts. Tighten to 25 Nm (18 lbf.ft).

fixing bolts to 25 Nm (18 lbf.ft).
