07 · Engine

CAUTION: Plug the connections.

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair › CAUTION: Plug the connections.
EngineCAUTION: Plug the connections. · page 1 of 5

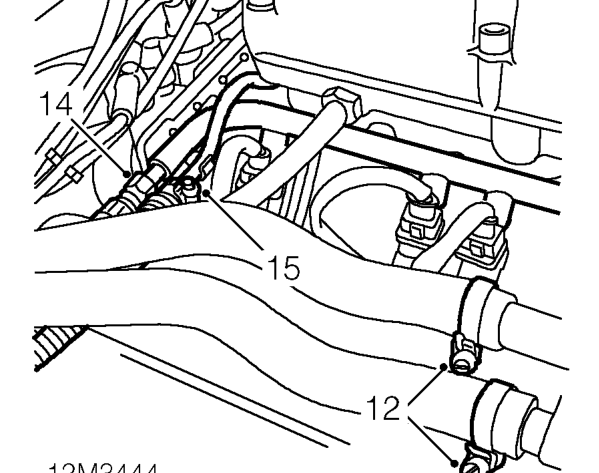

Diagram
  1. Loosen clip screw securing intake hose to MAF
  2. Loosen clip screws securing heater return and feed hoses to pipes and disconnect. 20. Remove nut securing kick-down cable clip to
  3. Position cloth to collect fuel spillage.
  4. Loosen fuel feed hose to rail union, allow fuel to spill and disconnect union.
  5. Loosen clip screw securing fuel return hose to fuel rail and disconnect hose.

CAUTION: Plug the connections.

  1. Remove cloth.
  2. Remove plenum chamber. See FUEL SYSTEM, Repair, plenum chamber

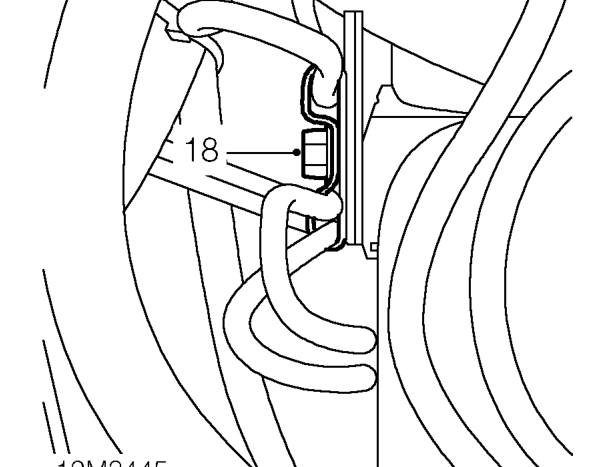

Caution: plug the connections. – Remove plenum chamber. See FUEL SYSTEM, Repair, plenum chamber
  1. Remove 3 cable ties securing purge pipe to
  2. Disconnect brake servo pipe from inlet manifold
  3. Remove bolt securing 2 breather pipe ’P’ clip to rear of RH cylinder head.

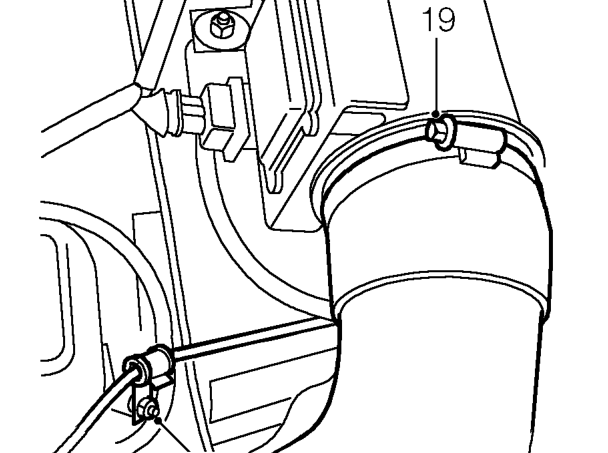

Caution: plug the connections. – Remove bolt securing 2 breather pipe ’P’ clip to rear of RH cylinder head.

sensor housing and remove hose.

rear of LH cylinder head.

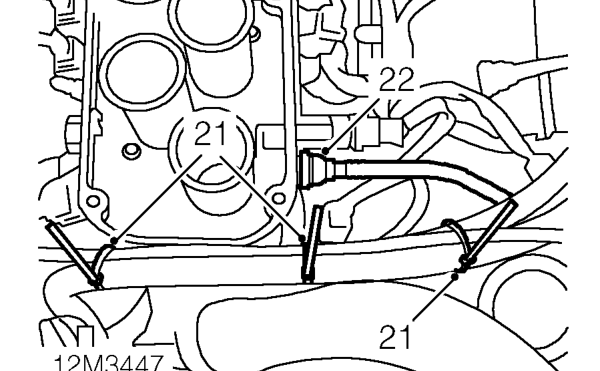

Caution: plug the connections. – rear of LH cylinder head.

coolant hose and harness, position pipe aside.

and position aside.
