Land Rover Defender V8i Workshop Manual Supplement07 · Engine
07 · Engine

CAUTION: Plug the connections. (page 4 of 5)

Make
Land Rover
Model
Defender V8i Workshop Manual Supplement
Section
Repair
EngineCAUTION: Plug the connections. · page 4 of 5
Diagram

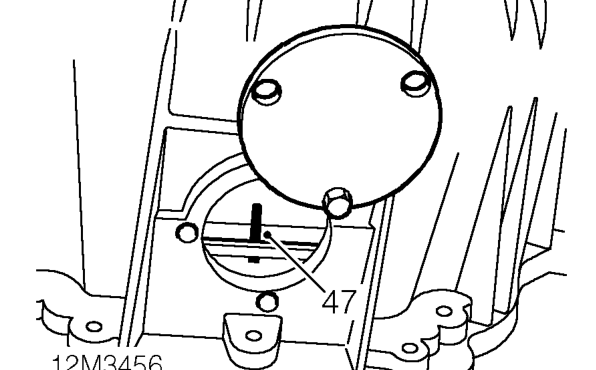

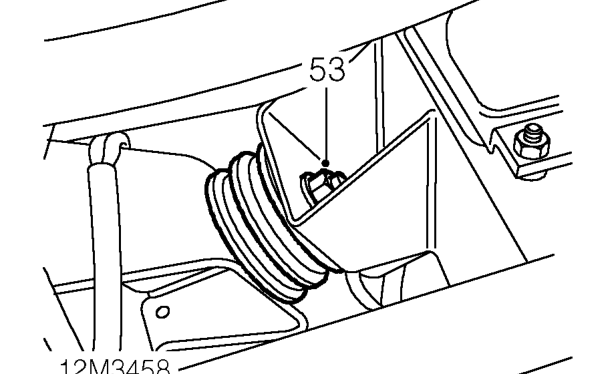

  1. Mark relationship between converter and drive 52. Remove nut securing RH engine mounting to plate.
  2. Rotate crankshaft to access drive plate to 53. Remove nut securing LH engine mounting to converter retaining bolts.
  3. Lower vehicle.
Lower vehicle.

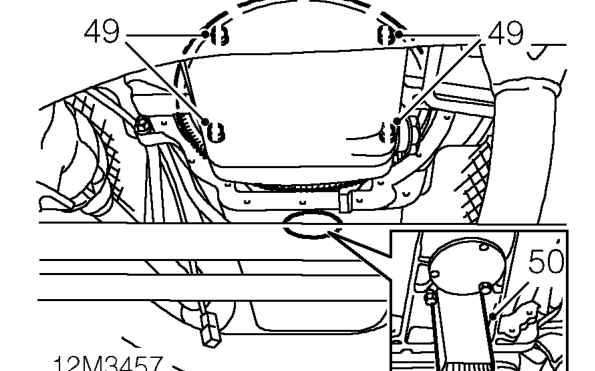

  1. Remove 4 bolts securing drive plate to converter.
  2. Fit suitable piece of wood through bell housing access hole to retain converter.
  3. Remove 2 bell housing lower retaining bolts.

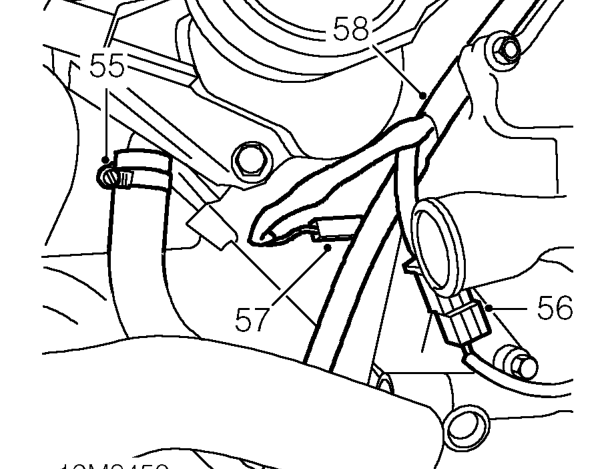

  4. Loosen clip screw and disconnect radiator
  5. Disconnect multiplug from camshaft position
  6. Disconnect Lucar from oil pressure switch.
  7. Release harness from front of engine.
Release harness from front of engine.

chassis bracket.

chassis bracket.

chassis bracket.

bottom hose from heater pipe.

sensor.
