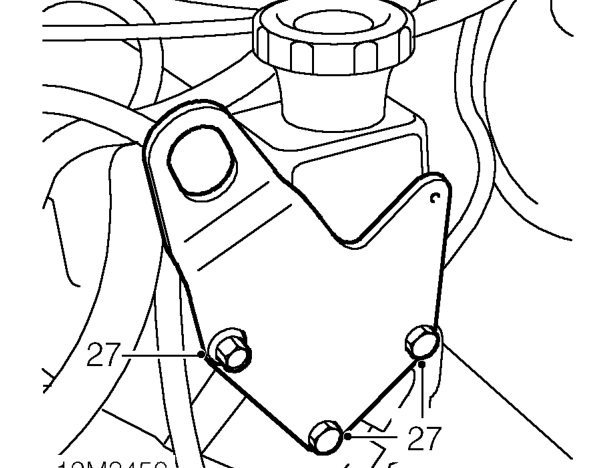

27. Position engine lifting bracket and secure with 3

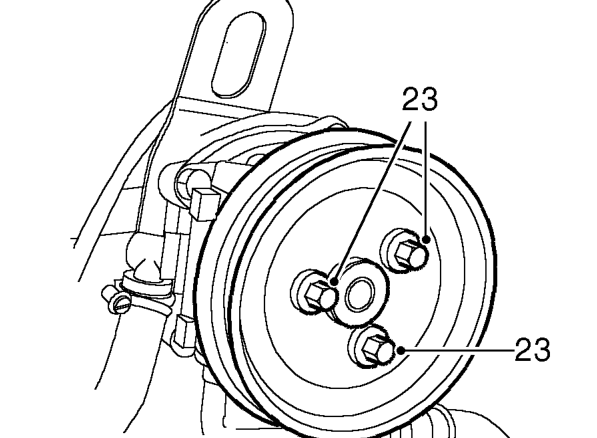

23. Remove 3 bolts securing PAS pulley and remove pulley. 28. Raise vehicle on ramp.
29. Remove 6 nuts securing exhaust front pipe to
30. Remove front bolt securing RH catalyst heat

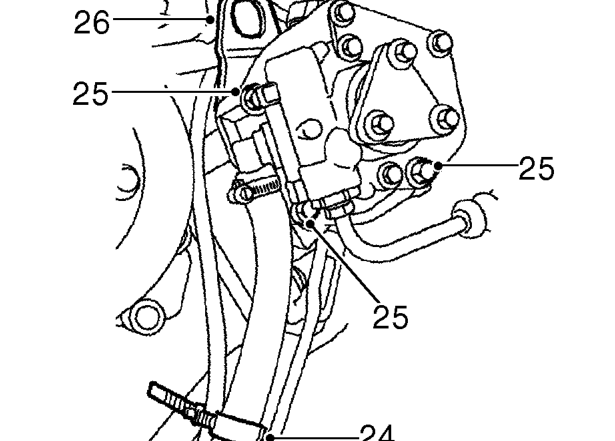

24. Release knock sensor harness clip from PAS return hose.
25. Remove 3 bolts securing PAS pump and position aside.
26. Collect engine lifting bracket. 31. Remove bolt securing starter motor heat shield

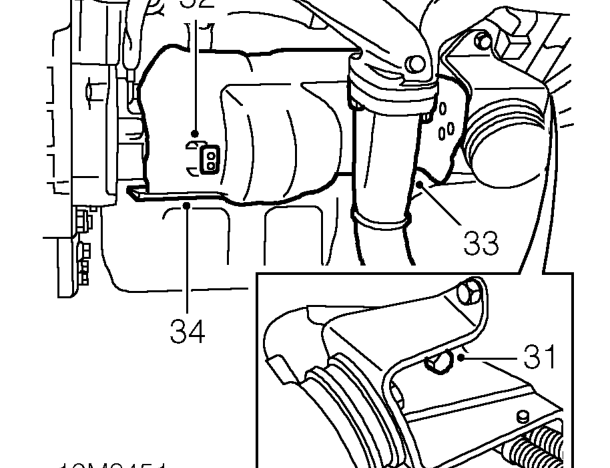

32. Release starter motor heat shield clip from
33. Release exhaust front pipe from manifold studs
34. Remove starter motor heat shield.

(3/8’’ UNC x 1’’ MAX) bolts.

manifolds.

shield to chassis.

to RH engine mounting bracket.

solenoid.

and remove and discard gaskets.
