300Tdi Defender
60
FRONT SUSPENSION
4
REPAIR

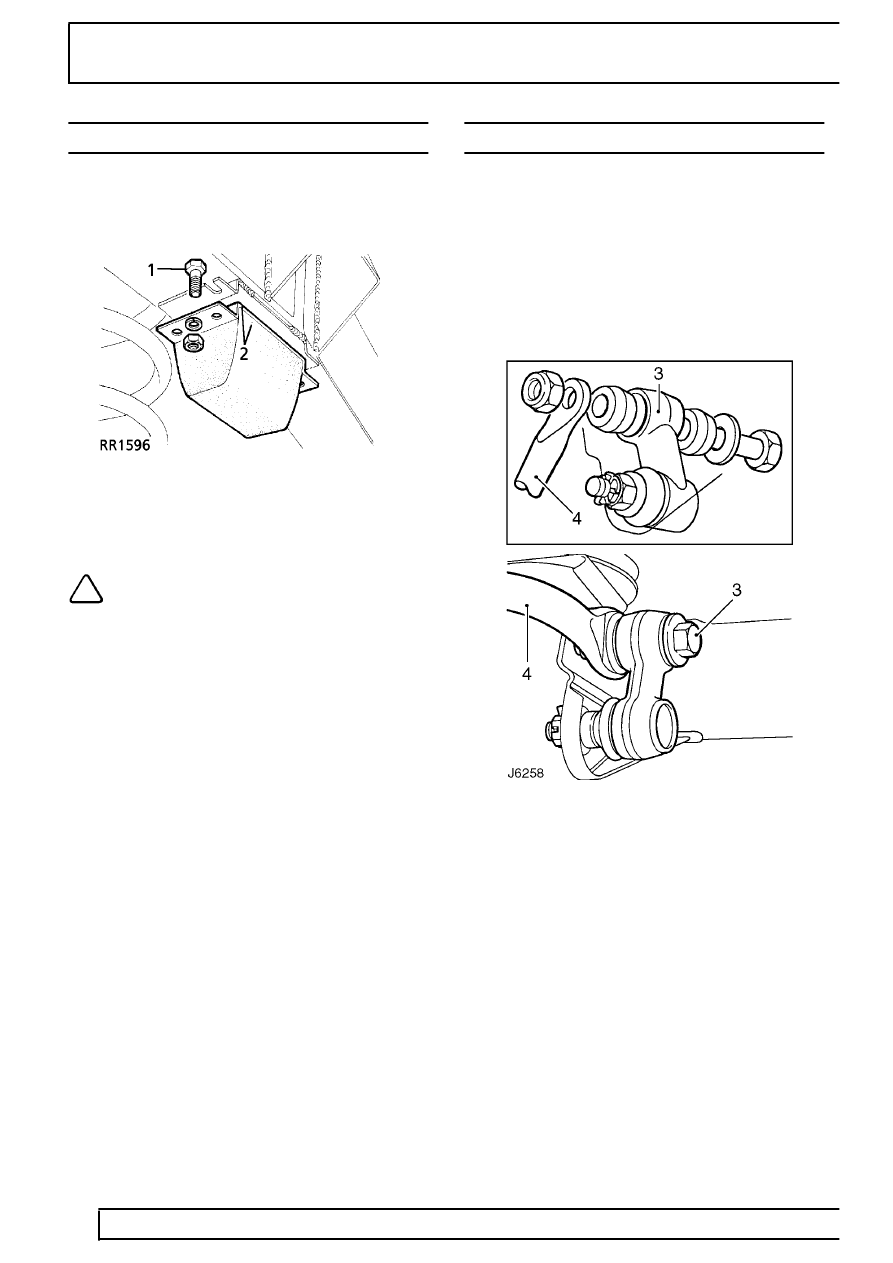

BUMP STOP
Service repair no - 60.30.10.
Remove
1. Remove fixings.
2. Remove bump stop.
NOTE: A chassis undertray may be fitted
on some vehicle derivatives to conform to
legal requirements. When under chassis
remove and refit procedures are required, it may
be necessary to remove the undertray
See
CHASSIS AND BODY, Repair, Front undertray .
Refit
3. Position bolts in slots in chassis brackets.
4. Fit bump stop, secure with washers and nuts.
ANTI-ROLL BAR
Service repair no - 60.10.01
Remove
1. Mark for reassembly position of rubber bushes
on anti-roll bar.
2. Remove 4 nuts, bolts and washers securing both
anti-roll bar bush straps to chassis mounting
brackets.
3. Remove nuts, bolts, washers and rubber bushes
securing anti-roll bar to both links
4. Remove anti-roll bar.
Refit
5. Position bushes on anti-roll bar. Ensure split
points towards axle on RH bush and away from
axle on LH bush.
6. Fit anti-roll bar with two straps. To ensure correct
fit angled sides of bar should point down.
Loosely fit the bolts, washers and nyloc nuts.
7. Fit bolt, washers and rubber bushes. Using new
nuts fit anti-roll bar to links and tighten to
68Nm
(50 lbf/ft).
8. Tighten nuts securing straps to
30Nm (22lbf/ft).
