300Tdi Defender
MANUAL GEARBOX
3
ADJUSTMENT

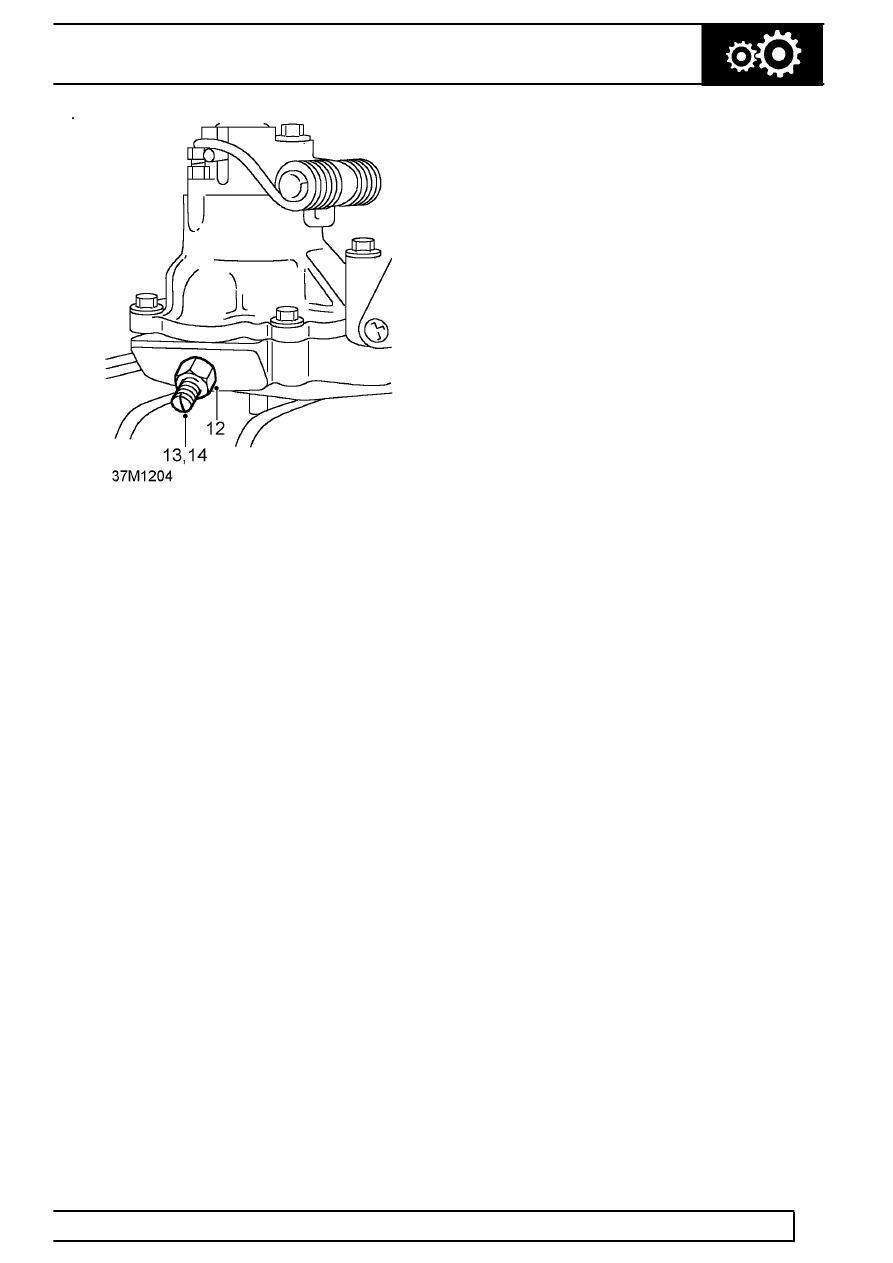

12. Slacken stop screw locknut.
13. Apply light pressure to gear lever towards LH
side and turn screw clockwise until it abuts yoke.
14. Turn screw anti-clockwise until 25 mm freeplay
is felt at gear lever knob. Ensure 5th gear can be
engaged.
15. Tighten stop screw locknut.
16. Check that all other gears are selectable.
17. Remove gear lever.
18. Manouvre tunnel cover into position and secure
with 16 screws.
19. Fit fuse box and cover.
20. Fit tunnel carpet.
21. Fit insulation pad into tunnel aperture.
22. Locate gaiter over lower lever and bias springs.
23. Fit gear lever to lower lever spline, secure with
new nyloc nut and tighten to
25 Nm (18 lbf/ft).
24. Fit gear lever cover.
25. Fit gear lever and transfer box lever knobs.
