300Tdi Defender
64
REAR SUSPENSION
2
REPAIR

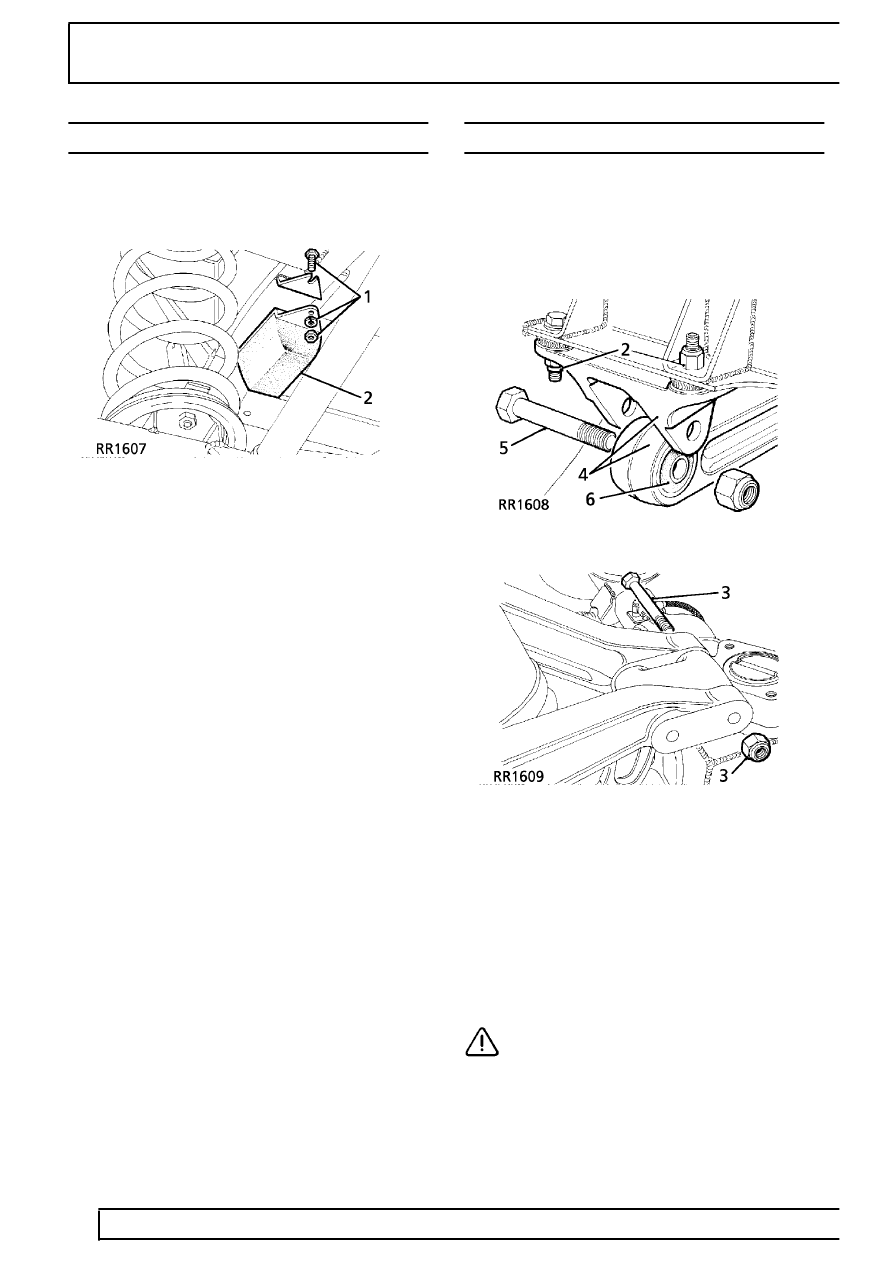

BUMP STOP
Service repair no - 64.30.15.
Remove
1. Remove fixings.
2. Remove bump stop.
Refit
3. Position bolts in slots in bracket.
4. Fit bump stop, secure with washers and nuts.
SUSPENSION LINK - UPPER
Service repair no - 64.35.44.
Remove
1. Support rear of chassis on stands, allow axle to
hang freely.
2. Remove fixings, upper link bracket to frame.
3. Remove fixings, upper links to pivot bracket.
4. Remove upper link, complete with frame bracket.
5. Remove bolt.
6. Separate link from bracket.
Renew bush
7. Press out rubber bushes.
8. Fit bush centrally in housing.
CAUTION: Apply pressure to outer edge of
bush, and not rubber inner.
