Vehicle identification number (VIN)

VEHICLE IDENTIFICATION NUMBER (VIN)

The Vehicle Identification Number and the recommended maximum vehicle weights are stamped on a plate located under the bonnet [hood] riveted to the front of the engine compartment.

Vehicle Identification Number Plate (UK, Australia, R.O.W., Europe)

D. Connect other end of second jumper cable to a good earth point on the engine, NOT TO NEGATIVE TERMINAL OF DISCHARGED

A.

BATTERY. Keep jumper lead away from moving

B.

parts, pulleys, drive belts and fan blade

C.

assembly.

D. E.

WARNING: Making final cable connection

F.

could cause an electrical arc which if made near battery could cause an

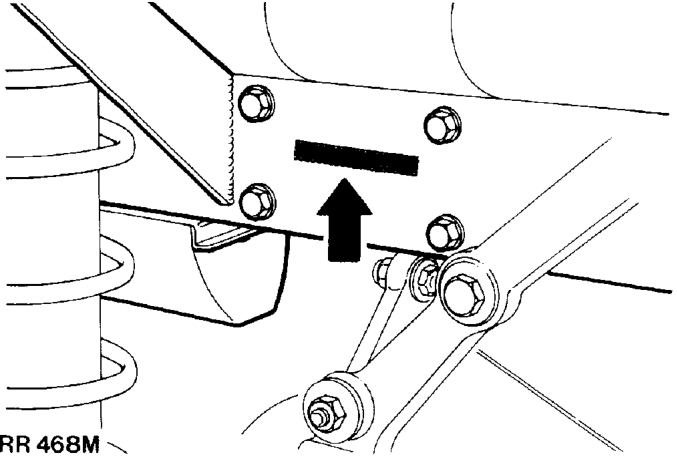

The number is also stamped on the right side of the

explosion.

chassis forward of the spring mounting turret.

3. If booster battery is installed in another vehicle, start engine and allow to idle.
4. Start engine of vehicle with discharged battery, following starting procedure in Owners’ Manual.

• CAUTION: If vehicle fails to start within a
• maximum time of 12 seconds, switch
• ignition off and investigate cause. Failing
• to follow this instruction could result in
• irrepairable damage to catalysts.

5. Remove negative (-) jumper cable from the engine and then terminal of booster battery.
6. Remove positive (+) jumper cable from positive terminals of booster battery and discharged battery.

Build date (Australia). Type approval VIN (17 digits) Maximum permitted laden weight for vehicle Maximum vehicle and trailer weight Maximum road weight-front axle Maximum road weight-rear axle
