Vehicle identification number (VIN) LOCATION OF IDENTIFICATION NUMBERS

Vehicle identification number (VIN) LOCATION OF IDENTIFICATION NUMBERS

An adhesive label containing the Vehicle Identification Engine serial number - 300Tdi Engine Number, date of manufacture and gross axle weight ratings is fixed to the lock face of the front left hand The 300Tdi engine number is stamped on the cylinder door. The information includes wheel and tyre sizes block on the right hand side of the engine above the and tyre pressures at gross axle weight ratings. camshaft front cover plate.

Engine serial number - Mpi engine

Stamped on the R.H. face of the cylinder block adjacent to the gearbox.

Engine serial number - V8i engine

Stamped on a cast pad on the cylinder block, between numbers 3 and 5 cylinders.

• NOTE: The appropriate engine
• compression ratio is stamped above the
• serial number.

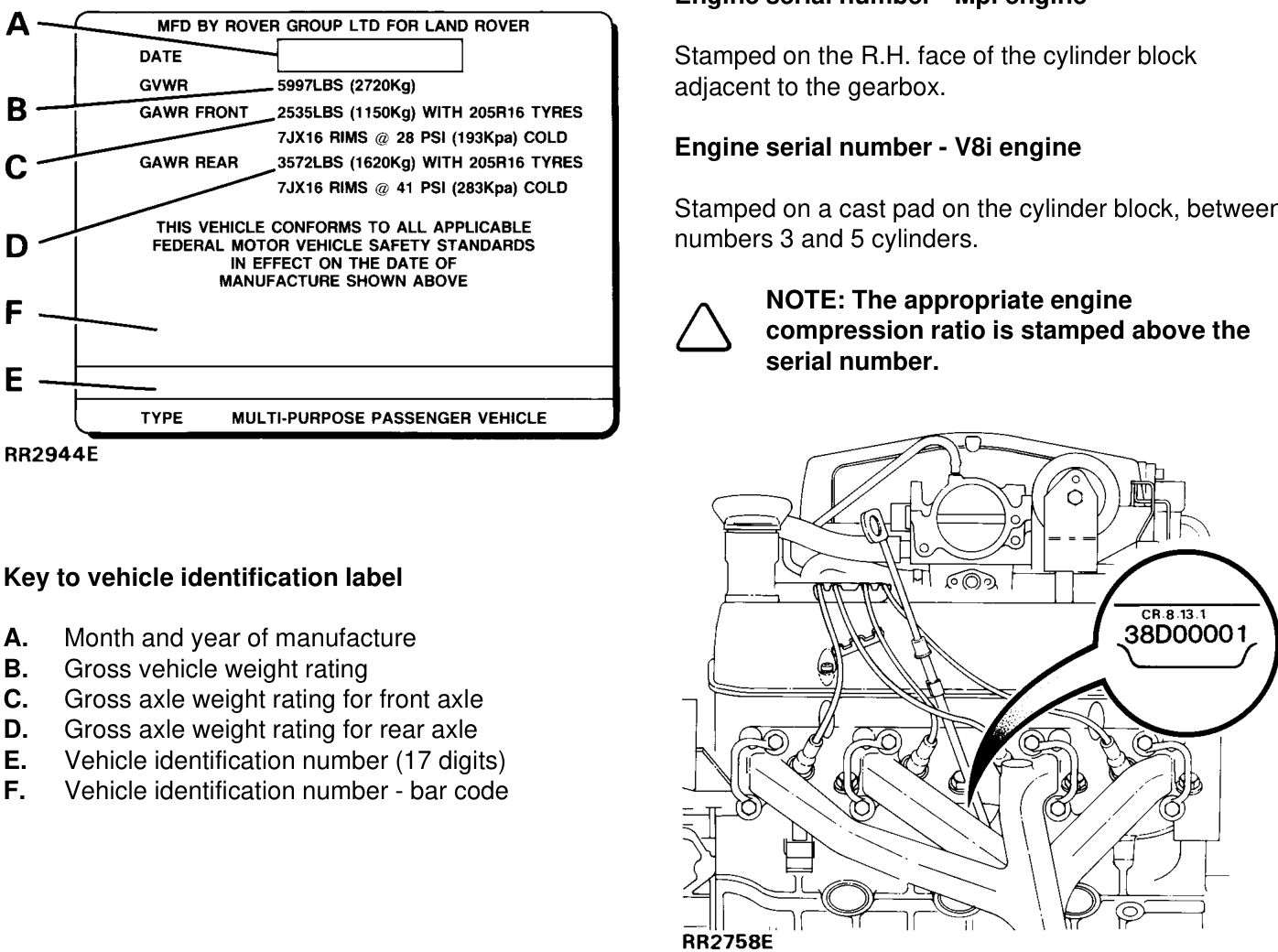

Key to vehicle identification label

A. Month and year of manufacture B. Gross vehicle weight rating C. Gross axle weight rating for front axle D. Gross axle weight rating for rear axle E. Vehicle identification number (17 digits) F. Vehicle identification number - bar code
