Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

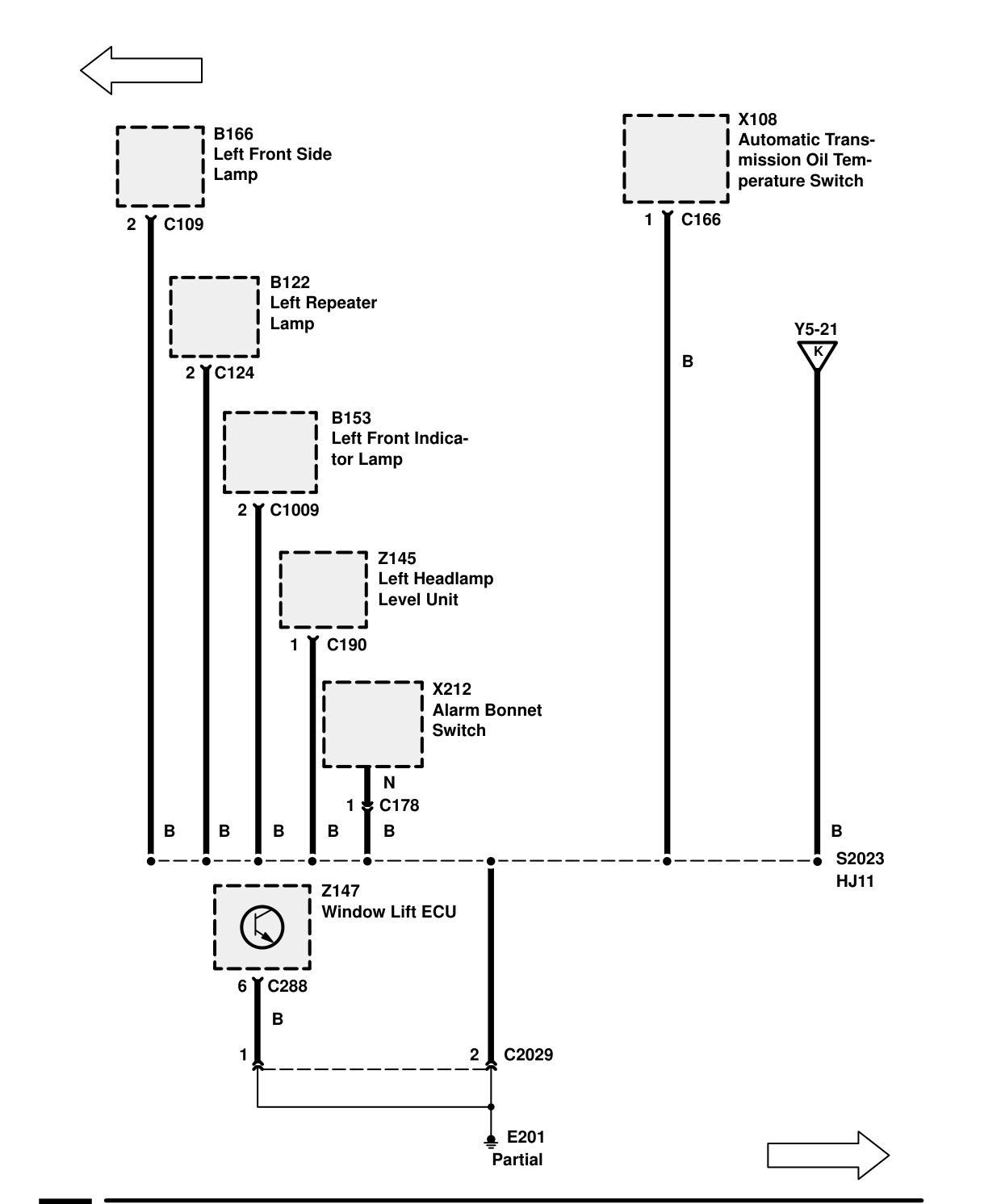

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B122 Left Repeater Lamp
- B153 Left Front Indicator Lamp
- B166 Left Front Side Lamp
- E201 Partial
- X108 Automatic Transmission Oil Temperature Switch
- X212 Alarm Bonnet Switch
- Z145 Left Headlamp Level Unit
- Z147 Window Lift ECU
