Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

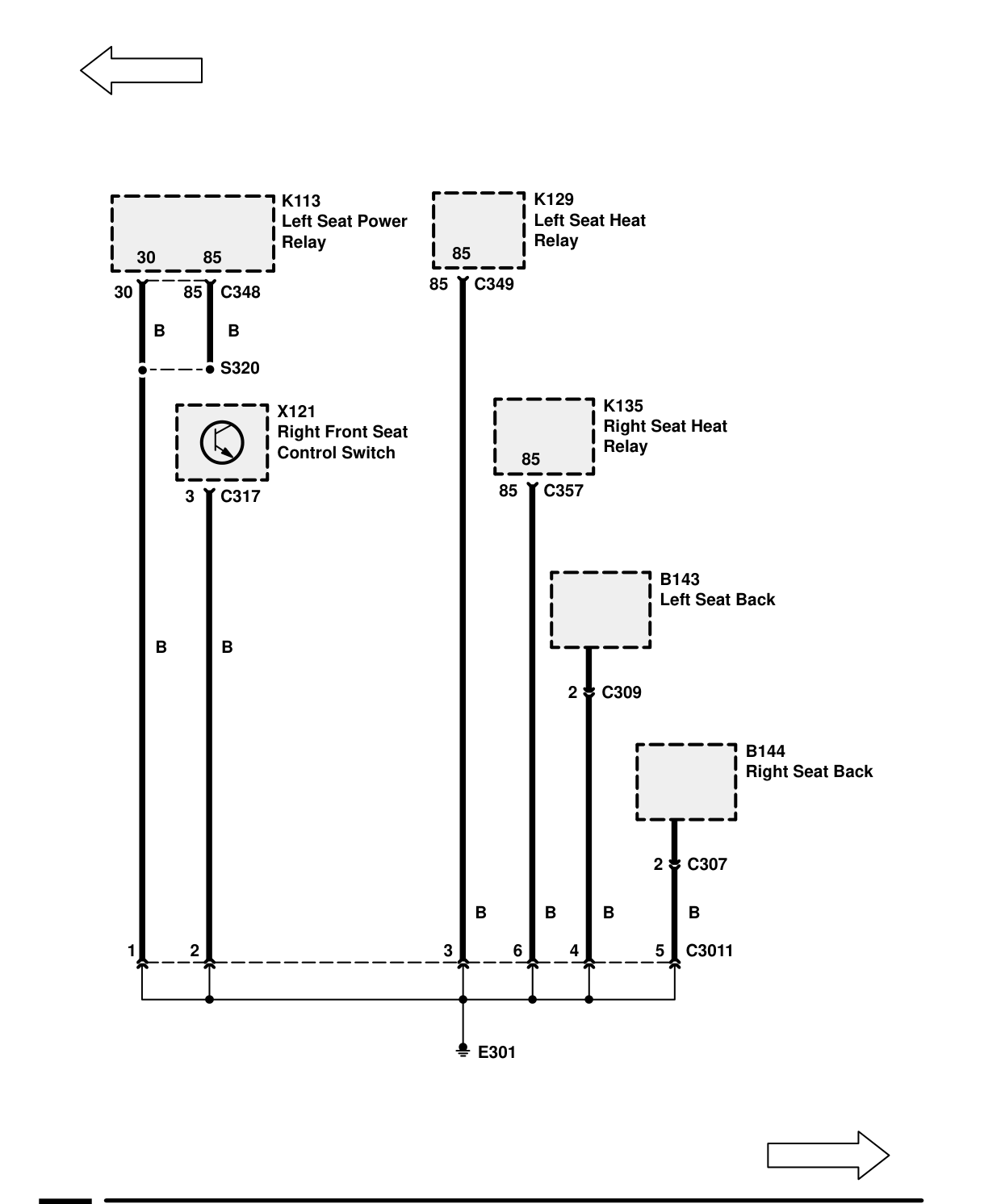

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B143 Left Seat Back
- B144 Right Seat Back
- K113 Left Seat Power Relay 85
- K129 Left Seat Heat Relay
- K135 Right Seat Heat Relay 85
- X121 Right Front Seat Control Switch
