Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

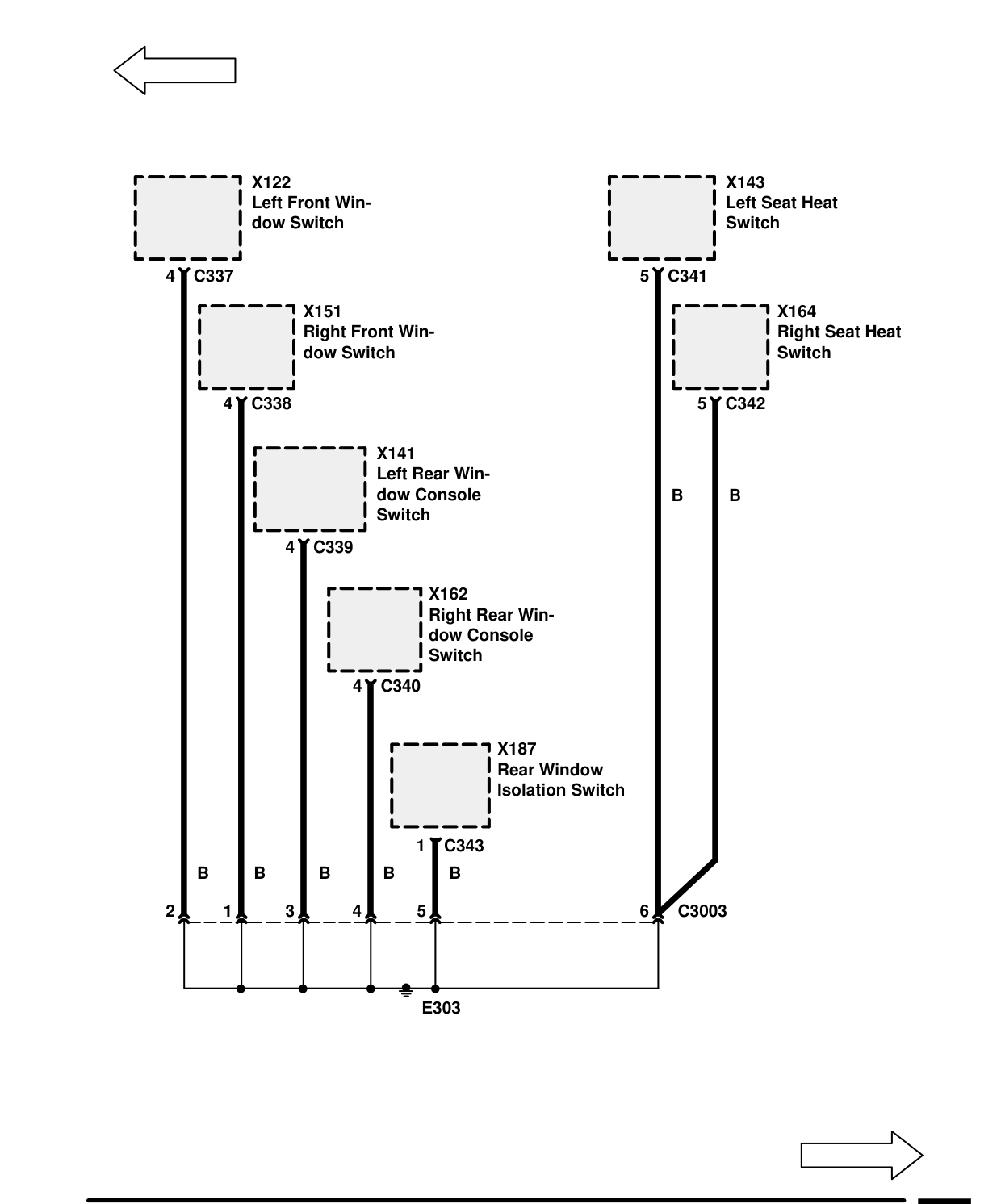

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- X122 Left Front Window Switch
- X141 Left Rear Window Console Switch
- X143 Left Seat Heat Switch
- X151 Right Front Window Switch
- X162 Right Rear Window Console Switch
- X164 Right Seat Heat Switch
- X187 Rear Window Isolation Switch
