Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1997 on
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

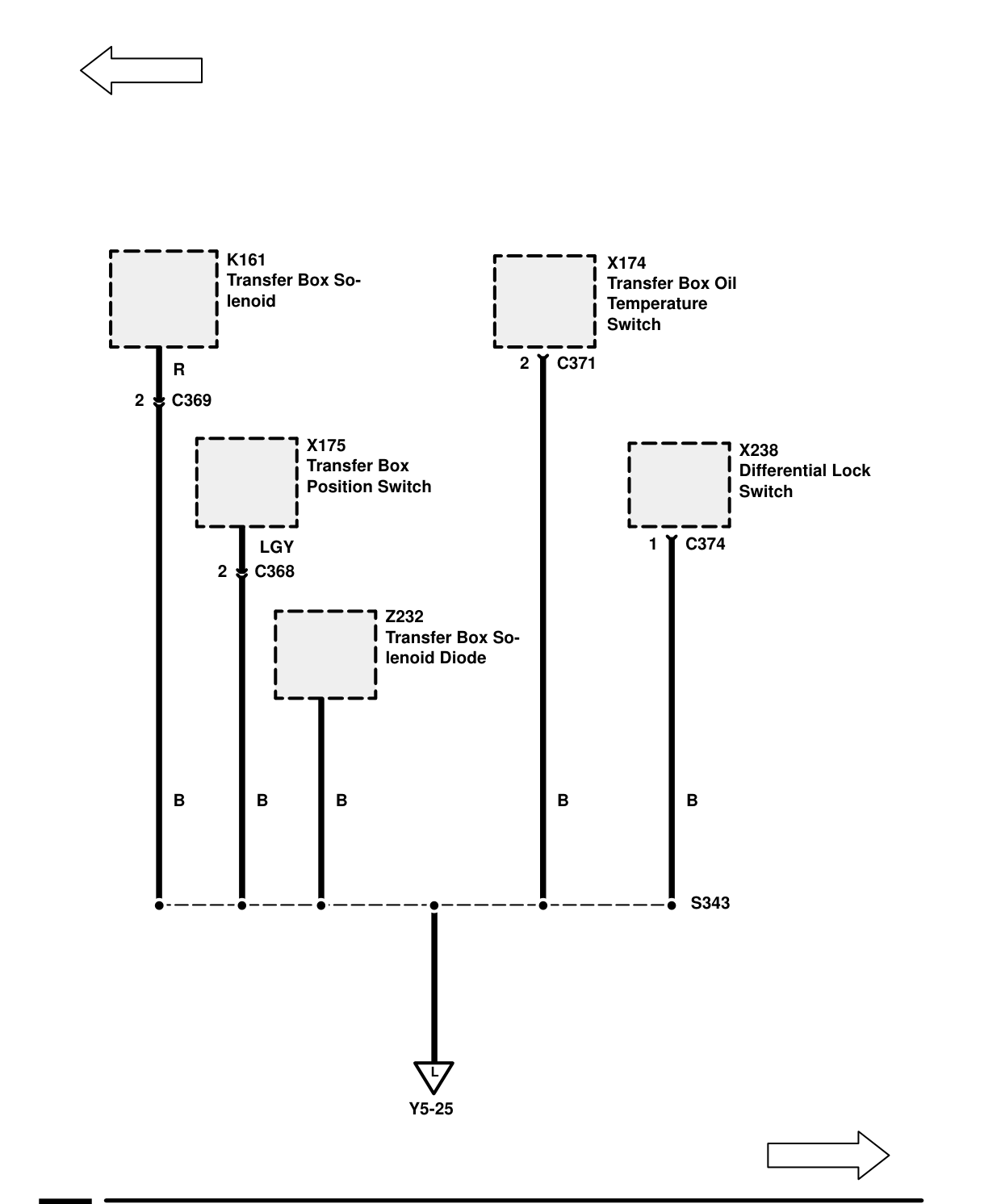

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- K161 Transfer Box Solenoid
- X174 Transfer Box Oil Temperature Switch
- X175 Transfer Box Position Switch
- X238 Differential Lock Switch
- Z232 Transfer Box Solenoid Diode
